UKSGL Winder Mk 1B, 32m, Reduction Gear & Ferrules, for Fuel Samplers of 500-2500ml
  • Click to enlarge

UKSGL Winder Mk 1B, 32m, Reduction Gear & Ferrules, for Fuel Samplers of 500-2500ml

Ideally suited for use with the range of samplers we sell, these winders are designed and made with the safety and convenience of operators in mind.

UK Sampling Gauges Ltd, MK 1B Winder was developed in order to meet the need for lifting and lowering the heavier samplers.

  • Includes a reduction gear drive between the winding handle and the reel, to reduce the effort required by the operator.
  • Includes a new auto-lock winding handle, for added safety.
  • The stainless steel cable has stainless steel ferrules attached at metre intervals throughout its length. Single short ferrules are used generally, and with long ferrules positioned as follows, to help the operator:
  •           at 5 metres, 1 long ferrule
  •           at 10 metres, 2 long ferrules
  •           at 15 metres, 3 long ferrules, and so on
  • The flexible cable is of stainless steel, avoiding the contamination that can occur with ropes and chains
  • The special hook minimises the risk of a sampler becoming detached from the winder.
  • The hook and cable, together with the winder’s earthing strap, ensure electrical continuity and prevent the build-up of static electricity in the sampling system.

To DIN EN ISO 3170, for manual sampling of petroleum liquids.

ModelBody MaterialCable MaterialMax Sampler Size (ml)Cable Length and DiamterWeight (Kg)
MK 1B Winder, with Ferrules316 Stainless Steel with Brass Guides316 Stainless Steel250030m * 2mm2.9

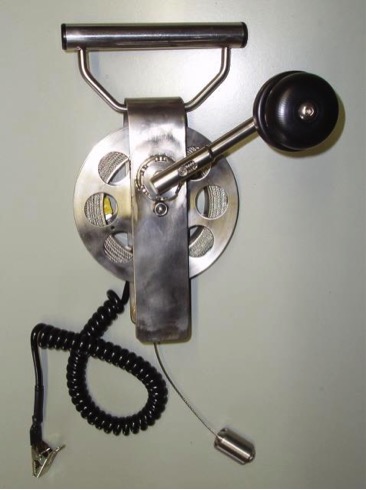

Shown Below: Winder Clasp / Hook Mechanism, 5mm Dia. Stainless Steel Hook.

Commodity Codes
Winders / Winches84253900
