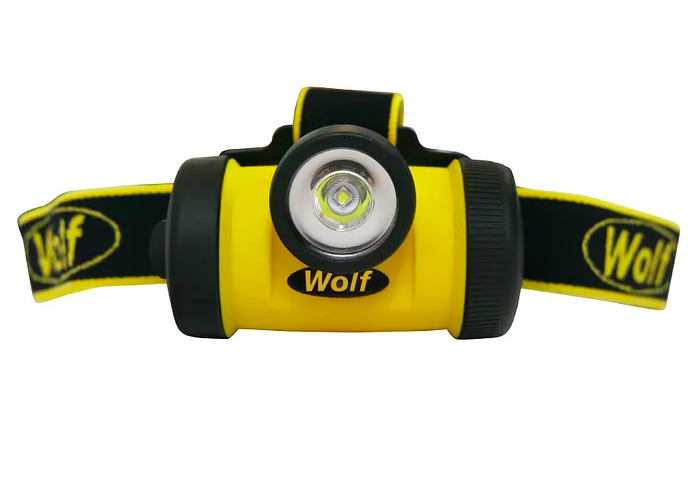

Wolf Safety Lamp Co, ATEX LED HT-650 Zone 0 Headtorch
The ATEX LED HT-650 Zone 0 Headtorch (Zones 0,1, 2, 21 and 22) is the ideal solution for high light output and long-duration, hands-free lighting - especially in hard-to-reach areas that require climbing or crawling. CE marked to the ATEX Directive and IECEx certified, the HT-650 is safe for use in Zones 0, 1 and 2 potentially explosive gas atmospheres, as well as Zones 21 and 22 dust atmospheres.
LIight Output / Duration / Power
- Fitted for life LED light sources with 25,000+ hrs life
- Up to 130lm (at source)
- Up to 17 hrs Battery Duration
Certification
- ATEX & IECEx Directive explosive gas, vapour, mist and dust certified for zones 0, 1, 2, 21 and 22
- T3/T4 temperature class (battery dependant, see instructions)
- 155°C maximum surface temperature
- IP67 ingress protection
- IIC Gas and IIIB Dust Approval
- Group I M1 Mining Approval
Features
- Wide angle flood for optimum workspace illumination
- Lightweight, ergonomic design
- Single handed switching
- Hands free operation
- IP67 water and dust tight
- Supplied with washable inert silcone rubber strap and helmet clips for hard hat use
- Tilt adjustment for light direction
NATO Codified version also available, NSN 6230-99-2262040, please email for details.
Specifications| Code - ATEX | I M1/ 11 1G Ex ia I Ma/ IIC T4/ T3 Ga IP67
Ex ib IIB T155 Celcius Db |
| Code - Gas | I M1 Ex ia I Ma IP67 |
| Type of Protection | 'ia' Intrinsic Satety |
| Area of Class (Gas) | Zones 0,1 and 2 - Gas groups IIA, IIB, IIC |
| Temp Classification (Gas) | T4/ T3 |
| Ambient Temp | -20 to +40 Celcius |
| Area of Classification (Dust) | Zones 21 and 22 - Dust Groups IIB |
| Max. Surface Temp (Dust) | 155 Celcius |
| Certificate | Baseefa 10ATEX0067X / IECEx BAS 10.0023X |
| Enclosure | High Impact Thermoplastic, Chemical Resistant |
| Lens | Shatterproof Polycarbonate |
| Beam Type | Broad Spot with Wide Angle Flood Light |
| Light Source - Type | High Power LED |
| Light Source - Output | Up to 130 lm |
| Light Source - Life | 25,000+ hours (fitted for life) |
| Power source - Part Number | 3 x HT-210 (LR6 Cells) |
| Power source - Type | LR6 primary cells, to IEC 60086, Alkaline AAA |
| Power source - Volts | 3 x 1.5vDC |
| Light Duration | Up to 17 hours |
| Lower Tempetaure Limit | -20 Celcius |
| Upper Temperature Limit | +40 Celcius |
| Ingress Protection | IP67 |
| Weight (Inc Cells) | 0.180kg |
Supplied in boxes of 10 or multiples thereof, if you require less than 10 please email us and we will quote.
Download Wolf Safety Lamp Co, HT-650 Head Torch - Brochure PDF
