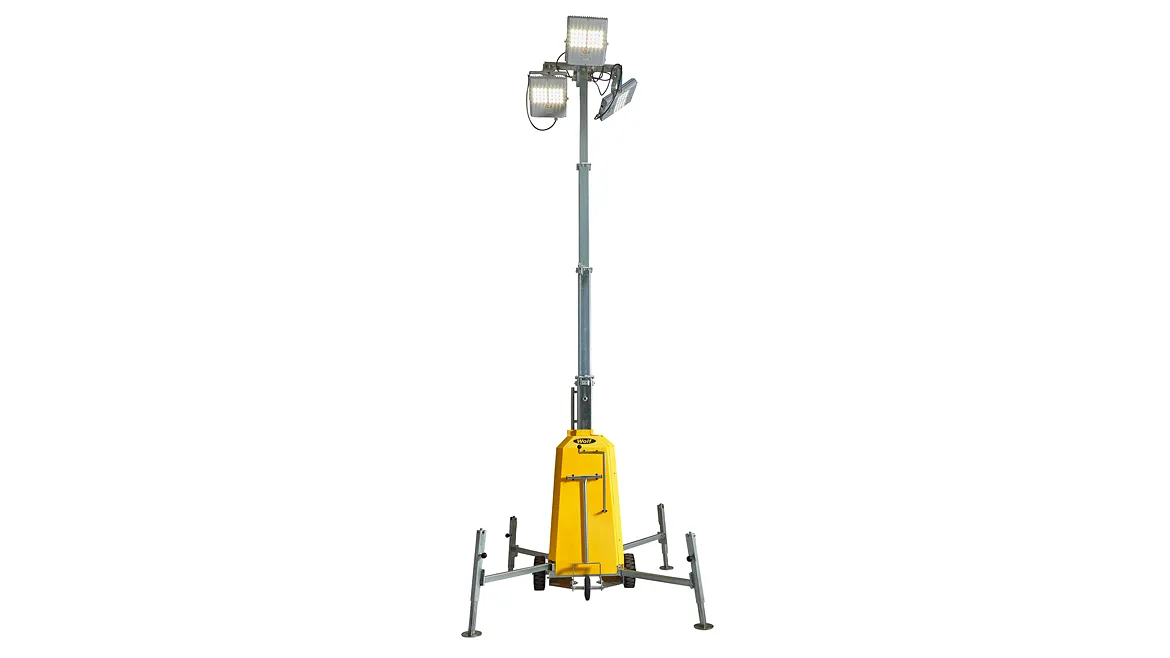

Wolf Safety Lamp Co, ATEX Towerlite
The WTL Wolf ATEX Towerlite is a strong, sturdy, and robust fully ATEX, IECEx and UKEX Zone 1,2/21,22 certified transportable tower light solution which can extend to up to 5.4 metres high. Fitted with three powerful and fully adjustable LED LFX2 Floodlites, the tower delivers up to 78,000 lumens of intense, bright light for overhead indoor or outdoor illumination of medium to large sized areas.
The Towerlite is a fully certified tower light solution designed to deliver a large, wide spread of bright light over medium to large sized Hazardous Area workspaces. The consistent and even distribution of light, delivered from a height of up to 5.4 metres, reduces shadows and glare helping to reduce accidents and enabling work tasks to be carried out efficiently and effectively.
FEATURES & BENEFITS
- A fully certified Gas Zone 1 and 2 and Dust Zone 21 and 22 ATEX, IECEx and UKEX Hazardous Area lighting solution
- The powerful overhead area illumination provides:
- A large, wide spread of bright, uniform lighting, giving a consistent and even distribution of light reduces shadows and glare
- Improved safety: helps reduce accidents by ensuring better visibility and minimising dark area
- Enhanced productivity: clear vision enables work tasks to be carried out efficiently and effectively
- Extendable to a height of 5.4m for excellent high level illumination
- Up to 78,000 lumens of high quality, ultra bright light from 3 x LFX2 Floodlites
- IP66 - ideal for both indoor or outdoor use
- Fully adjustable with individual Floodlite rotation and tilt
- Supplied with HO7RN-F cable for the input to and outputs from the Towerlite™
- Supplied with a fitted ATX, CEAG, Marechal or Stahl Ex plug
- Available in 110V or 230V versions
- Easy to manoeuvre and set up in minutes by a single operator
- Approximate weight 320kgs
- Integral fork truck pockets for easy on-site transportation
- Suitable for use in winds of up to 40mph/64kph
- Options available with a socket for inter-connecting towers
Specifications| Product Reference | WTL-110V | WTL-230V |
| Code - ATEX | Fully Certified ATEX IECEx and UKEX Zone 1,2 / 21,22 tower lighting solution |
| Code - Gas | II 2 G Ex eb mb IIC T4 Gb |
| II 2 D Ex tb IIIC T110 Celcius Db |
| Certification | ExVeritas 19 ATEX 0586X / IECEx EXV 19.0079X / ExVeritas 21 UKEX 0939X |
| Input Power | 3 x 180 W |
| Votage Options | 88 - 140V AC | 180 - 277V AC |
| 50 - 60 Hz | 50 - 60 Hz |
| Power Factor | >0.95 |
| Light Output | 78,000 lms |
| Light Source | 3 x Wolf LXf2 Floodlites (32 LEDS per light) |
| Beam Angle | 62 Celcius |
| Certificate | Baseefa 10ATEX0067 / IECEx BAS 10.0023 / BAS21UKEX2436 |
| Enclosure | High Impact Thermoplastic, Chemical Resistant |
| Lens | Shatterproof Polycarbonate |
| Beam Type | Broad Spot with Wide Angle Fringe Light |
| Plug Options | ATEX, CEAG, Marechal, Stahl |
| Dimensions | Mast Height 5.5m when fully extended |
| Weight | Approximately 300 kg (including lights) |
| Ambient | - 20 Celcius to + 50 Celcius | -50 Celcius to 50 + Celcius |
| Colour Temperature | 5000K |
Supplied in boxes of 10 or multiples thereof, if you require less than 10 please email us and we will quote.
