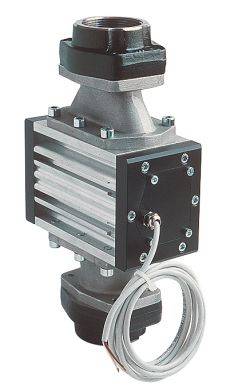

Piusi K700 Pulser, Oval Gear Flow Meter
  • Click to enlarge

Piusi K700 Pulser, Oval Gear Flow Meter

For full product details refer to the below Piusi PDF downloads or Piusi.com

THIS ITEM IS SUPPLIED WITHOUT ANY LCD DISPLAY, THIS IS AN OPTIONAL EXTRA AVAILABLE IN THE OPTIONS BELOW

Features & Performance
Model NumberF0049800A
DisplayNone Supplied - Optional
Power SourceNA
Power ConsumptionNA
Output SignalReed Switch, Single Channel, 28vAC/DC 100mA
Pulses Per Litre14
Accuracy±0.5%
User CalibrationYes
Inlet / Outlet Fittings2" BSP Female
Min Flowrate25 lpm
Max Flowrate250 lpm
Max Pressure20 Bar / 284 PSI
Viscosity2-2000 cSt
Pressure Loss0.5 Bar / 7.25 PSI
Temperature RangeUnknown
Weight5.5 Kg=

For Pulser versions, an optional Remote Electronic Display is available HERE, and is shown below;

Options (Pulse Transmitters)
Part NumberTo Suit Piusi Pulse MetersTypeTo suit Pulses
F1175400BK700Pulse Transmitter14
F0049501AK200, K400, K600 Oil, K600 Diesel, K600/4, K700Pulse Transmitter1, 2, 10, 14, 20, 26, 33, 35, 50, 100
Options (Remote Displays)
Part NumberTo Suit Piusi Pulse MetersTypeTo suit Pulses
F0049502AK200, K400, K600 Oil, K600 Diesel, K600/4, K700Remote Display1, 2, 10, 14, 20, 26, 33, 35, 50, 100

Download Piusi K700 Pulser - Catalogue Page PDFDownload Piusi K700 Pulser - Catalogue Page PDF

Download Piusi K700, Oval Gear Pulse Meter, User Manual PDFDownload Piusi K700, Oval Gear Pulse Meter, User Manual PDF

Download Piusi K700, Oval Gear Pulse Meter, Spares PDFDownload Piusi K700, Oval Gear Pulse Meter, Spares PDF
