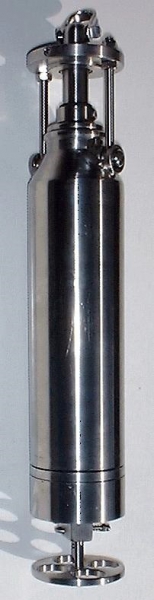

UKSGL Fuel Sampler/Thief, Multi-Functional: Any-Level & Bottom (ALBTMS)
  • Click to enlarge

UKSGL Fuel Sampler/Thief, Multi-Functional: Any-Level & Bottom (ALBTMS)

UK Sampling Gauges Ltd, ALBTMS samplers combine the functions of two basic sampler types. They can be used to obtain spot samples from any level or depth within a liquid, to check for quality, density, or chemical purity, for example. They can also be used to obtain samples from the bottom (or at a specified distance from the bottom) of a tank or reservoir, to look for water underneath oil or fuel. They are ideally suited to taking samples from the fuel/water interface, to obtain evidence of microbial growth.

The ALBTMS sampler has two valves – one at the top, opened by a snatch on the supporting cable, the other at the bottom, opened by the protruding leg contacting the bottom of the tank or reservoir.

In operation, both valves stay closed (and the sampler therefore stays empty) until the sampler reaches the depth at which the sample is required. For this reason, you can be sure that true samples are obtained, uncontaminated and undiluted by liquid from any other level in the tank or reservoir

ATEX:

  • The ALBTMS Sampling Gauge is NOT ATEX approved in its own right.
  • The ALBTMS Sampling Gauge can be supplied in ATEX standard, when it is purchased at the same time as a Mk-1A Winder.
  • The ATEX certificate will contain the serial numbers of both the Mk-1A Winder and the Sampling Gauge. The Winder will have an "ATEX Sticker" applied to it, and the Sampling Gauge will bear no additional markings.
  • The ATEX marking is Ex II 1G IIC c T3
  • Other Sampling Gauges that qualify for ATEX approval in conjunction with EACH Mk-1A Winder are: BTMSALS, ALSBV
  • The ATEX certification is provided FREE OF CHARGE and automatically, when a qualifying gauge and winder are purchased

To DIN EN ISO 3170, for manual sampling of petroleum liquids.

Specification
ModelNATO Stock No.MaterialCapacity (ml)Overall Diameter (mm)Overall Length (mm)Inlet Diameter (mm)Weight (Kg)Bottom Sample Range (mm)
ALBTMS 382 316 Stainless Steel30038570 1.510 to 120
ALBTMS 501 Brass50064345 210 to 200
ALBTMS 502 316 Stainless Steel50064345 210 to 200
ALBTMS 1001 Brass100064520 2.510 to 350
ALBTMS 1002DMC No 34E / NSN 6695-99-255-0244316 Stainless Steel100064520 2.510 to 350

Samplers can either be lowered with a specialised hand-winch, for smooth and clean operation, or, more crudely, with a length of cotton rope, cotton is used because it is chemically resistant to all fuels, any also fibre that enters the fuel will not harm it, what with fuel filters being made from cotton fibre also. Rope can be found in the options below, priced per metre. Hand Winches can be found by clicking the image below:

For sample analysis of H.Res (Diesel Bug), bacteria, and fungi, Oilybits recommend ECHA Microbiology, Microbmonitor2 Microbial Culture Test Kits. For information and to order please click the image below;

Commodity Codes
Sampling Vessels90328900
Cotton Rope52071000

Download UKSGL ALBTMS - ATEX Information PDFDownload UKSGL ALBTMS - ATEX Information PDF

Download UKSGL ALBTMS - CML ATEX Certificate PDFDownload UKSGL ALBTMS - CML ATEX Certificate PDF

Download UKSGL ALBTMS - CML IECEX Certificate PDFDownload UKSGL ALBTMS - CML IECEX Certificate PDF
