Fuel Sampling Bucket, Stainless Steel with Bottom Band, Fitted With Grounding Cable and RACO Clip. 10L, 12L and 15L
  • Click to enlarge
  • Click to enlarge

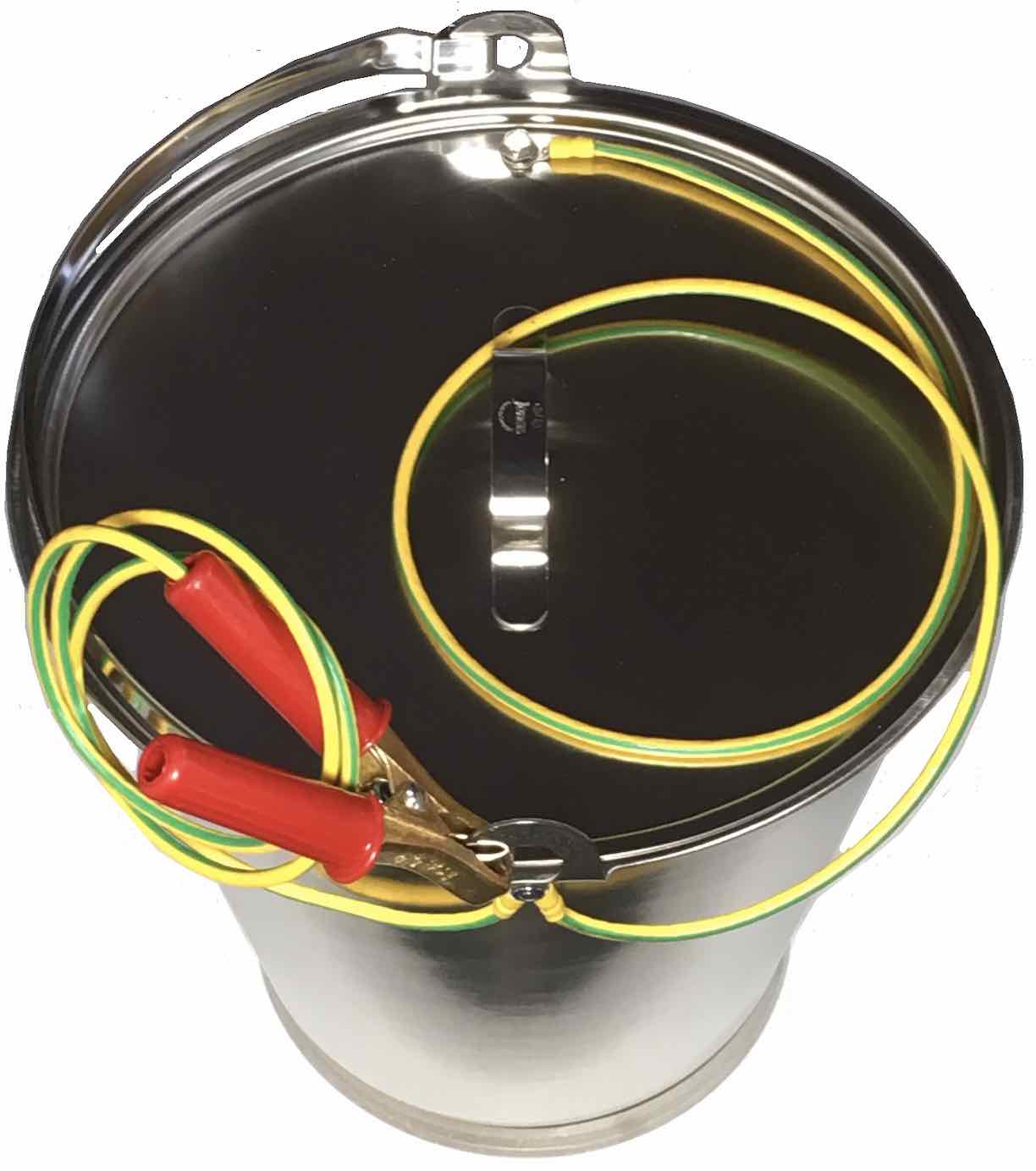

Fuel Sampling Bucket, Stainless Steel with Bottom Band, Fitted With Grounding Cable and RACO Clip.

  • High quality, strong & durable
  • Made of 18/10 stainless steel, 100% rust-free
  • One-piece construction, no seams or welds to harbour bacteria or split
  • Flat handle will not cut into your hand when bucket is heavy
  • Base measures 8” diameter on all sizes
  • Bottom band lifts the cold or warm surface off the floor and creates a "grab-hold" for tipping, it also gives weight to the base to prevent toppling
  • Will not distort if water freezes inside
  • Lids are available for every size (all subject to MOQ and must be ordered with buckets
  • With Grounding Cable and Clip, for earthing the bucket when it is to-hand
  • Available in 10, 12, and 15 litre capacities (15 litre subject to MOQ)

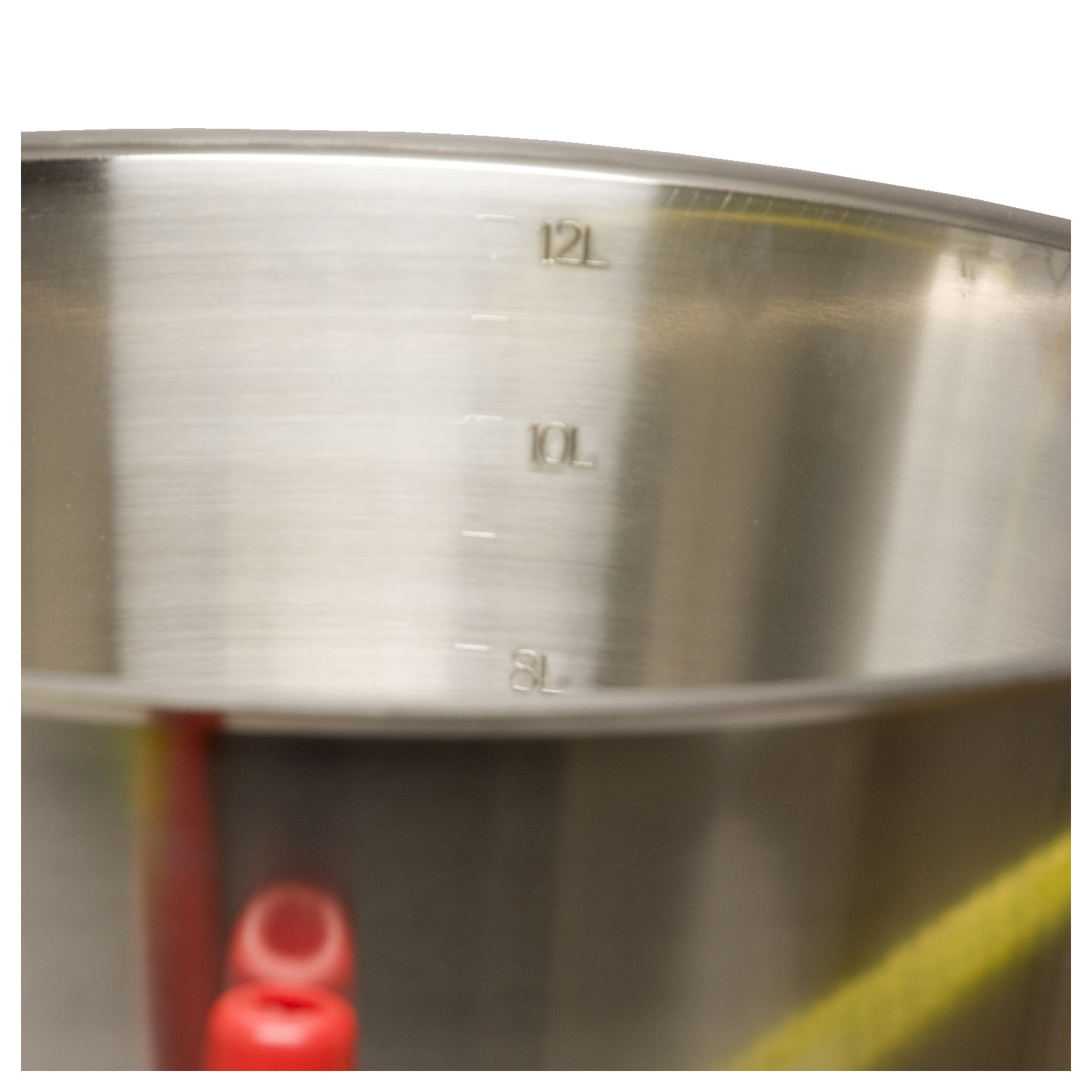

  • Stamped graduations inside the bucket every 1 Litre, figured at 5 and 10 Litre
  • Fitted with 1m of static bonding cable and quality 'RACO' earthing clamp - we can also supply without the bonding assembly if required

About Our Unique Grounding Cables...

  • Manufactured by Oilybits in our U.K. production facility.
  • Polyolefin yellow/green stripe, heat shrink cable sheath - the correct colour for earthing applications and fully resistant to Oils, unlike PVC.
  • 6mm2 tinned copper, braided cable for greater resistance to acidic / oxidised oils.
  • 1m length of cable.
  • Cable end terminals are fused with solder to prevent fraying, loosening, and contamination / corrosion of the cable, thereby ensuring a stable ground connection.
  • RACO, cast brass, 70mm grounding clip, with red handles.
  • 304 stainless steel nuts and bolts throughout, featuring Nyloc Nuts or Shake-proof Washers to prevent loosening, thereby ensuring a stable ground connection.
  • Nylon inner seal on vessel bolt, to prevent leakage of contents above the terminal. Oil resistant.
  • A superior product to that of our competition.

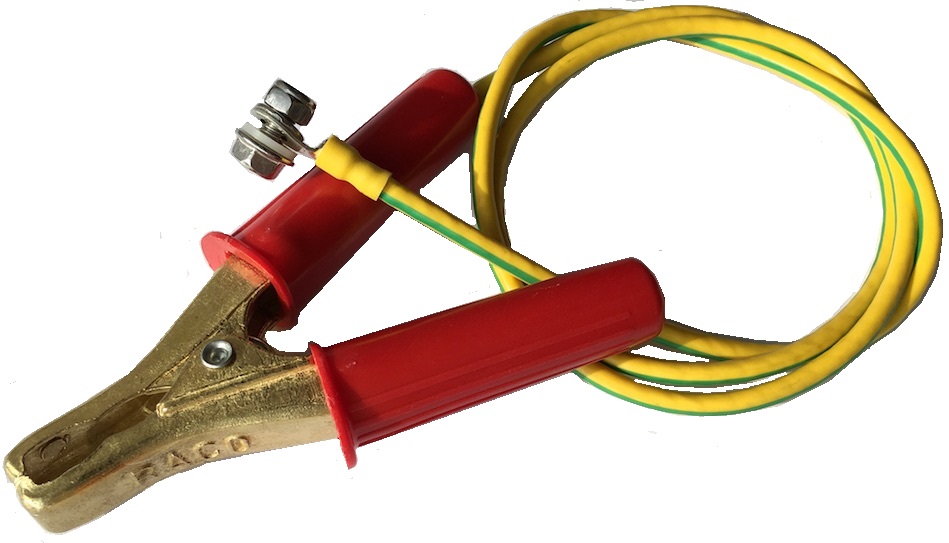

Shown Below; Grounding Cable, featuring soldered terminal end & nylon bolt seal.


Bucket Specifications
Capacity Rim Diameter Overall Diameter Bucket Height Overall Height Weight With Grounding Clip Our Part Number
10 Litre 300 mm   260 mm     523101-03
12 Litre 310 mm 325 mm 290 mm 320 mm 1.58 Kg 523102-03
15 Litre 325 mm   330 mm     523103-03
Lid Specifications
Capacity Diameter Our Part Number
10 Litre 300 mm 523201
12 Litre 310 mm 523202
15 Litre 325 mm 523203

Shown Below: Optional Bucket Lids
