Giuliani Anello 70600/6B Gas Filter
For use with Gas of the follwing groups;
- Manufactured Gases (Town Gas)
- Natural Gases (Group H - Methane)
- Liquified Petroleum Gas (LPG)
- Non Agressive Gases
All filters are fitted with connectors for inlet and outlet pressure taps.
Technical Specifications| Threaded Connections | Rp UNI-ISO 7/1 |
| Maximum Inlet Pressure | 6 Bar |
| Filtration Degree | <50 Micron |
| Working Temperature | -20c to +80c |
| Mechanical Strength | According to EN13611 (Group 2) |
Made in Italy.
Manufacturers & Part Numbers| Type | Size | Manufacturers Part Number | Manufacturers Type Number | Filter Style | Micron Rating | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| Aluminium Bowl, Aluminium Cover | 1/2" | 007.0060.000 | 70611/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 3/4" | 007.0061.000 | 70612/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 1" | 007.0066.000 | 70601/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 1" | 007.0062.000 | 70602/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 1.25" | 007.0063.000 | 70604/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 1.5" | 007.0064.000 | 70603/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
| Aluminium Bowl, Aluminium Cover | 2" | 007.0065.000 | 70631/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage with Galvanised Steel Reinforcement, NBR Cover O'Ring | 50 | 10 |
Replacement Filter Element Part Numbers| Fits | Manufacturers Part Number | Manufacturers Type Number | Filter Style | Micron Rating | Giuliani Anello Brochure Page (Refer to PDF Brochure Below) |
| 70611/6B & 70612/6B | 014.0091.002 | 3216/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage, NBR Cover O'Ring | 50 | 11 |
| 70602/6B & 70603/6B & 70604/6B | 014.0092.002 | 3217/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage, NBR Cover O'Ring | 50 | 11 |
| 70631/6B | 014.0093.002 | 3218/6B | Viledon P15/500S Panels, DIN EN779, Synthetic Cage, NBR Cover O'Ring | 50 | 11 |

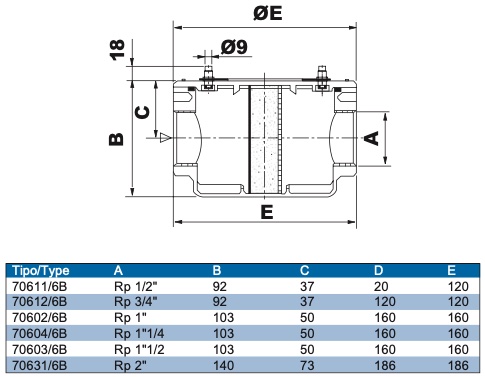

Below: Dimensions
Download Giuliani Anello Brochure, 2015 PDF
Download Giuliani Anello Gas Brochure, 2012 - Performance Charts PDF
