Great Plains Industries / GPI 01 Series Turbine Flow Meter, Digital, Nylon
  • Click to enlarge

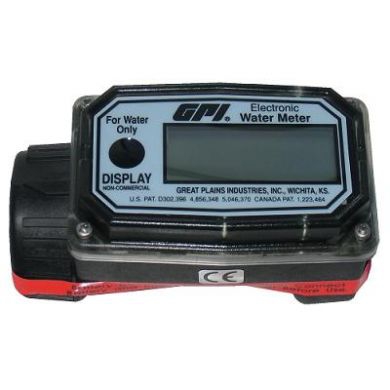

Great Plains Industries / GPI 01 Series Turbine Flow Meter, Digital, Nylon

This meter will display a batch (resettable) total, and a cumulative total (resettable by removal of the batteries) of the liquid passing through it, it will not show the ‘flow-rate’ in ‘litres per minute’ that is flowing through at a given time. See GPI A1 or G2 for flow-rate meters

This meter states on its display "For Water Only" this is just because it has been factory calibrated to measure water, although it is chemically compatible with many other fluids of similar viscosity which it can also be used with, for example; Ethanol, Methanol, Adblue (Urea), Sea Water, and Salt Water

Optional Lexan Cover helps to protect from accidental damage

Approvals

  • European; CE - EMC Directive 89/336/EEC

Features & Performance


GPI Part Number 113255-6
Display Digital
Power Source 2X AAA Batteries
Minimum Flow Rate 10 lpm
Maximum Flow Rate 100 lpm
Maximum Viscosity 100 Centipoises
Accuracy ±5.0%
Temperature Range -10° to +54° Celcius
Maximum Pressure 10.3 Bar
Factory Calibration Yes
User Calibration No
Inlet / Outlet Fittings 1" BSP Female Threaded
Wetted Components
Housing Nylon 6-6
Journal Bearings Ceramic
Shaft Tungsten Carbide
Rotor Nylon 6-6
Rings 316 Stainless Steel
Signal Generators (Ferrite) Ceramic Magnet

Download GPI 01N Meter Owners Manual PDFDownload GPI 01N Meter Owners Manual PDF
