Piusi K24 Turbine Flow Meter, PP
  • Click to enlarge

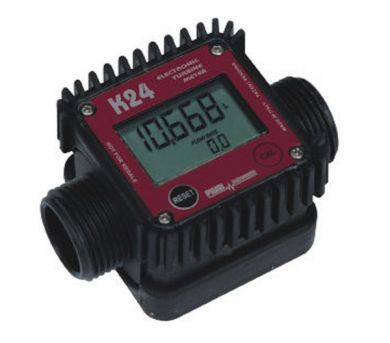

Piusi K24 Turbine Flow Meter, PP

Piusi K24 Flow Meters are designed to meet a wide range of product delivery measuring requirements in non-resale applications

Pulser version also available, this can provide an output to other fuel management / monitoring systems

Standard non-pulser versions are supplied complete with digital LCD display, showing;

  • Resettable 5-Digit batch total with floating decimal point between 0.1 to 99999
  • Non resettable total, 6-digit to 999999
Wetted Components
HousingGlass Reinforced Polypropylene
SealsViton
TurbineGlass Reinforced Polypropylene
Turbine ShaftStainless Steel
Technical Information - Local Display Version
Model NumberK24 BSP (F0040700A)K24 US GAL/NPT (F0040704A)
DisplayDigital LCDDigital LCD
Power Source2x1.5vDC Batteries2x1.5vDC Batteries
Power ConsumptionUnknownUnknown
Output SignalNoneNone
Pulses Per LitreNoneNone
Accuracy±1.0%±1.0%
User CalibrationYesYes
Inlet / Outlet Fittings1" BSP Male to 1" BSP Male, supplied with 1x SS316 1"BSP Female-Female Socket1" BSP Male to 1" BSP Male, supplied with 1x SS316 1"BSP Female-Female Socket
Min Flowrate6 lpm1.3 US GPM
Max Flowrate120 lpm30 US GPM
Max Pressure20 Bar / 300 PSI20 Bar / 300 PSI
Pressure Loss0.15 Bar / 2.17 PSI0.15 Bar / 2.17 PSI
Temperature RangeUnknownUnknown
Weight0.4 Kg0.4 Kg
Technical Information - Pulse Version
Model NumberK24 BSP (F0040722A)
DisplayNone - Pulse Out Signal Wire Only, 100 PPL / 0.01 LPP
Power SourceNone
Power ConsumptionUnknown
Output Signal1/0
Pulses Per LitreNone
Accuracy±1.0%
User CalibrationYes via remote meter
Inlet / Outlet Fittings1" BSP Male to 1" BSP Male, supplied with 1x SS316 1"BSP Female-Female Socket
Min Flowrate6 lpm
Max Flowrate120 lpm
Max Pressure20 Bar / 300 PSI
Pressure Loss0.15 Bar / 2.17 PSI
Temperature RangeUnknown
Weight0.4 Kg

Download Piusi K24 Flowmeter Catalogue Page PDFDownload Piusi K24 Flowmeter Catalogue Page PDF

Download Piusi K24 Pulser Catalogue Page PDFDownload Piusi K24 Pulser Catalogue Page PDF

Download Piusi K24 Flowmeter User Manual PDFDownload Piusi K24 Flowmeter User Manual PDF

Download Piusi K24 Pulse Meter User Manual PDFDownload Piusi K24 Pulse Meter User Manual PDF

Product Options

£123.60


Product CodePIUL5
ConditionNew
