Oilybits, Aviation EX 56 Drum Kit, ATEX Approved
After many years of supplying similar one-off kits as specials, we have created a standardised range of ultra-reliable aviation fuel pumping system kits for; Drum, IBC, and Wall-Mount application, all featuring the Piusi Panther EX 56 Pump, ISO-1825 Aviation Hose/s, Elaflex ZVF 25 Aviation Nozzle, and with options for Flow Meters, and Filters.
All of our kits are supplied with an Alptec Stainless Steel Bonding Cable & C-Clamp with paint-piercing points to bond the pump to the rim of the drum or IBC cage. If used in a building you will need to ground the drum to earth in your facility, in the same way that you ground the aircraft itself, we offer a range of grounding cables for this HERE. If used in the field, we recommend the OPTIONAL Elaflex Nozzle Cap & Chain, and Bonding Cable & Clip to go with the included nozzle.
Elaflex electrically-conductive hose/s are connected to the pump using Cam & Groove Couplings and Aluminium Saddle Clamps, ensuring the continuity of bonding, and because of this, extension hose/s could be inserted if longer hose/s are occasionally required. The couplings do not close the hose ends, so the hose/s can be easily drained for storage, or fully dried out for onward transport. Self-closing ATEX-approved couplings (HERE) are available if required, let us know your requirements and we can quote.
Ordinary industrial electrical cable should be used and is not included - Refer to EN 60079-14 Explosive Atmospheres; Part 14: Electrical installations design, selection, and assembly, cables intended for use in explosion-hazard zones are used in the same configuration as in industrial installations, except for intrinsically safe circuits.
We list the range of standard configurations with prices here but we can configure these kits however you like, let us know your requirements and we can quote.
Features| Pump | Piusi Panther EX 56 + 3/4"NPTM ATEX Cable Gland (You will need to wire in a power cable and plug as required) |
| Cable Gland | Bimed OCTANS EBU-2NBNC, 10-18mmID Cable Gland, M26*1.0mm (3/4"NPT), ATEX Approved |
| Cable | Not supplied. Ordinary industrial quality flex of the required specification is to be used. |
| Nozzle | ZVF 25 + Nozzle Filter (Advise type of spout required, Avgas, Jet, or Reduced - See Options HERE) |
| OPTIONAL Nozzle Bonding | ZVF 25 1.2m Bonding Cable & Clip + Cap & Chain |
| OPTIONAL Flow Meter | Piusi K150 ATEX |
| Inlet Strainer | Piusi F2400700A Bung Adaptor for Panther EX, with Washable Stainless Steel Gauze (Pictured Below) |
| OPTIONAL Filter Housing | Parker Velcon VF-31E |
| OPTIONAL Filter Element | Parker Velcon ACOX-210A (Spare filters are not included and must be ordered seperately) |
| Suction Hose | Piusi F008934020 Metal Telescopic Tube Adj. 650mm to 1100mm (Pictured Below) |
| Delivery Hose | Elaflex HD 25, ISO-1825 Type-C, 25mmID |
| Hose Couplings | Aluminium Cam & Groove, with Viton Gaskets |
| Hose Clamps | Aluminium Saddle Clamps |
| Grounding (to drum) | Alptec CC-01, with 1m PVC Coated Stainless Steel Cable |
| Seals | Viton O-Rings, Except for; NBR Oval-Rings (Flanged Elbow to Mounting Flange), NBR O-Rings (Bung Adaptor) |
Performance| Voltage / Frequency | 230vAC 50Hz (EU) |
| kW | 0.5 |
| Amps | 2.3 |
| Bypass Valve Y/N | Y |
| Max Flow | 56 lpm |
| Discharge Pressure | 1.6 Bar |
| Max Suction Lift (Dry) | 1.1 m |
| Max Suction Lift (Wet) | 1.1 m |
| Inlet Fitting | DN25 |
| Outlet Fitting | DN25 |
| Max Particle Tolerance | 100 Micron |
| Thermal Protection Y/N | Y |
| Ingress Protection | IP55 |
| Weight | 18.3 Kg |
| Meter Accuracy | ±1% |

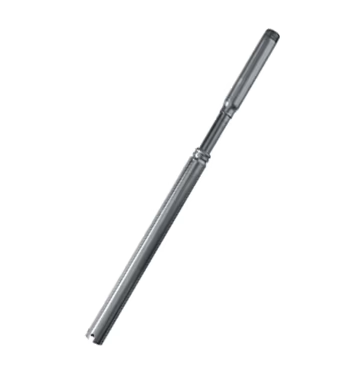

Shown Below; Piusi F2400700A Bung Adaptor with Strainer for Panther EX, and Piusi F008934020 Metal Telescopic Tube Adj. 650mm to 1100mm
Download Piusi Panther EX 56 Drum - Brochure PDF
Download Piusi Panther EX 56 Drum - ATEX Certificate PDF
Download Piusi K150 ATEX - Catalogue Page PDF
Download Piusi K150 ATEX Certificate PDF
Download ZVF 25 - Catalogue Page PDF
Download Parker Velcon Filter Housing VF-31E - Brochure PDF
Download Elaflex Yellow-Band Aviation Fuel Hose - Brochure PDF
Download Alptec SC Series - ATEX Certificate PDF
