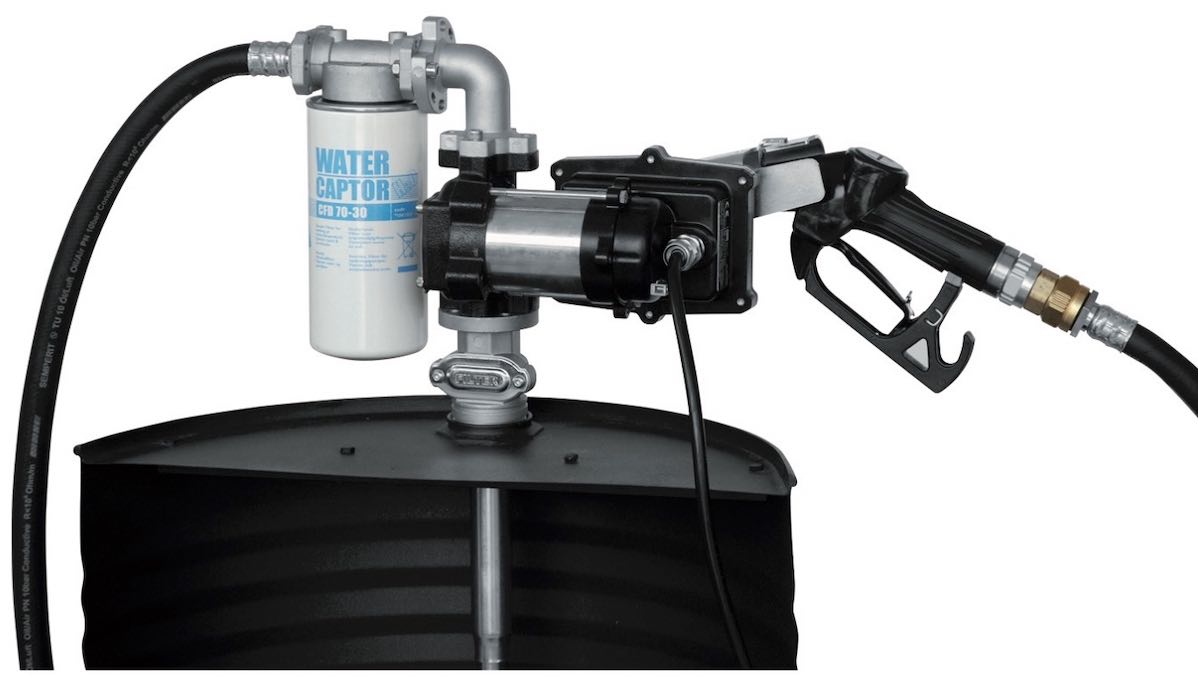

Piusi EX50 Drum, Vane Pump Drum Kit, ATEX Approved

For full product details refer to the below Piusi PDF downloads or Piusi.com

Suitable for:

Diesel
Kerosene
Petrol
Petrol + 15% Ethanol
Avgas 100 / 100LL (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
Jet A / A1 (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
Aspen 2/4

Specifications
Piusi Part Number	F00372000	F00372010	F00372020	F00372030	F00372040	F0037400A	F0037401A	F0037402A
Piusi Description	Drum EX50 12V DC ATEX + Manual Nozzle	Drum EX50 12V DC ATEX + Auto Nozzle	Kit Drum EX50 12V DC ATEX	Drum EX50 12V DC ATEX + Manual Nozzle + Cable	Drum EX50 12V DC ATEX + Auto Nozzle + Cable	Drum EX50 230V ATEX + Manual Nozzle	Drum EX50 230V ATEX + Auto Nozzle	Kit Drum EX50 230V ATEX
Utilises Piusi Pump	Piusi EX50	Piusi EX50	Piusi EX50	Piusi EX50	Piusi EX50	Piusi EX50	Piusi EX50	Piusi EX50
Utilises Piusi Nozzle	Piusi Self 3000 ATEX	Piusi A60 ATEX	None	Piusi Self 3000 ATEX	Piusi A60 ATEX	Piusi Self 3000 ATEX	Piusi A60 ATEX	None
Utilises Piusi Flow Meter	None	None	None	None	None	None	None	None
Utilises Piusi Filter	Piusi Water Captor, 30 Micron	Piusi Water Captor, 30 Micron	None	Piusi Water Captor, 30 Micron	Piusi Water Captor, 30 Micron	Piusi Water Captor, 30 Micron	Piusi Water Captor, 30 Micron	None
Voltage / Frequency	12vDC	12vDC	12vDC	12vDC	12vDC	230vAC 50-60Hz (EU)	230vAC 50-60Hz (EU)	230vAC 50-60Hz (EU)
Maximum Users	NA	NA		NA	NA	NA	NA	NA
kW	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Amps	21	21	21	21	21	1	1	1
Hose Length	4 m	4 m	None	4 m	4 m	4 m	4 m	None
Hose ID	3/4"	3/4"	NA	3/4"	3/4"	3/4"	3/4"	NA
Bypass Valve Y/N	Y	Y	Y	Y	Y	Y	Y	Y
Max Flow	50 lpm	50 lpm	50 lpm	50 lpm	50 plm	50 lpm	50 lpm	50 lpm
Discharge Pressure	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar
Max Suction Lift (Dry)	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m
Max Suction Lift (Wet)	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m	1.1 m
Inlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1"BSP
Outlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1"BSP
Max Particle Tolerance	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron
Thermal Protection Y/N	Y	Y	Y	Y	Y	Y	Y	Y
Max Liquid Viscosity	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Ingress Protection	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55
Weight	10 kg	10 kg	7.9 Kg	10 kg	10 kg	10 kg	10 Kg	7.9 Kg
Accuracy	±1%	±1%	NA	±1%	±1%	±1%	±1%	NA
