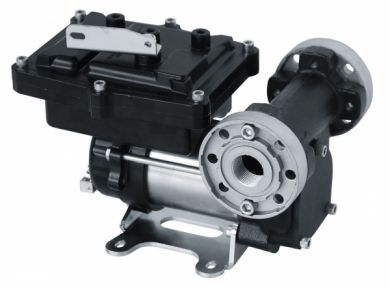

Piusi EX50, Vane Pump, ATEX Approved
For full product details refer to the below Piusi PDF downloads or Piusi.com
Suitable for:
- Diesel
- Kerosene
- Petrol
- Petrol + 15% Ethanol
- Avgas 100 / 100LL (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
- Jet A / A1 (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
- Aspen 2/
Approval: ATEX: II 2 G Ex D IIA T4 Gb
Performance| Part Number | F0037103A | F00371000 | F0037300A |
| Variant | Pump Only | Pump Only | Pump Only |
| Voltage | 12vDC | 12vDC | 230v 50-60Hz |
| Max Suction Lift | 2 m | 2 m | 2 m |
| Max Flow | 50 lpm | 50 lpm | 50 lpm |
| Outlet Pressure | 1.6 Bar | 1.6 Bar | 1.6 Bar |
| Max Viscosity | Fuel Oils | Fuel Oils | Fuel Oils |
| Internal Bypass | Yes | Yes | Yes |
| Adjustable Bypass | No | No | No |
| Amps | 21 | 21 | 1.2 |
| Duty Cycle | 30 Min On / 60 Min Off | 30 Min On / 60 Min Off | 30 Min On / 30 Min Off |
| RPM | 2700 | 2700 | 2700 |
| Max Liquid Temp | 57c | 57c | 57c |
| Max Room Temp | | | |
| Ingress Protection | IP 55 | IP 55 | IP 55 |
| Ports | 3/4" BSP In/Out | 1" BSP In/Out | 1" BSP In/Out |
| Weight | 6.9 kg | 6.9 kg | 6.9 kg |
Download Piusi EX50 Datasheet PDF
Download Piusi EX50 AC & DC ATEX Certificate PDF
