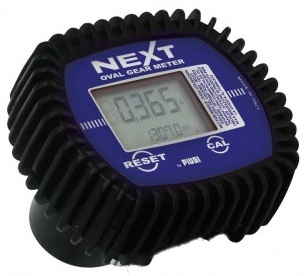

Piusi NEXT/2 Oval Gear Flow Meter
  • Click to enlarge

Piusi NEXT/2 Oval Gear Flow Meters

Piusi NEXT/2 Oval Gear Meters are designed for lubrication oil measuring requirements in non-resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses

Supplied complete with digital display, showing;

  • Resettable batch total with floating decimal point between 0.001 to 999.99
  • Non resettable total, 8-digit to 99999999
Wetted Components
Housing Anodised Aluminium
Seals NBR (Nitrile / Buna-N)
Gears Acetyl Resin (Delrin)
Gear Shafts Unknown
Technical Information
Model Number NEXT/2 Oil (F00486150)
Display Digital
Power Source 2x1.5vDC Batteries
Power Consumption Unknown
Output Signal None
Pulses Per Litre None
Accuracy ±0.5%
User Calibration Yes
Inlet / Outlet Fittings 3/4" BSP Female
Min Flowrate 6 lpm
Max Flowrate 60 lpm
Max Pressure 70 Bar / 1015 PSI
Pressure Loss 0.5 Bar / 7.25 PSI
Temperature Range Unknown
Weight 0.6 Kg

Download Piusi (General) Oval Gear Meters Catalogue Page PDFDownload Piusi (General) Oval Gear Meters Catalogue Page PDF

Product Options

£152.80
