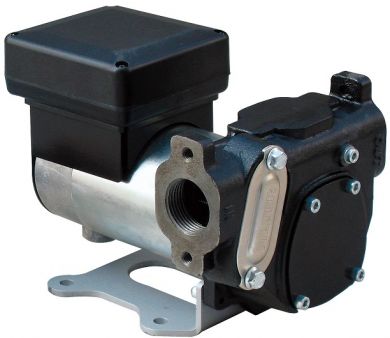

Piusi Panther DC, Vane Pumps
Rotary, Self Priming, Vane Pumps featuring high flow rates, and easy operation and installation. For use with Diesel & Biodiesel
Wetted Components
| Pump Body |
Steel |
| Impellor Case |
Cast Iron |
| Impellor Case Seal |
Viton |
| Motor Shaft Seal |
Viton |
| Vanes |
Acetyl Resin |
| Vane Springs |
Not Present |
| Rotor / Gear / Impellor |
Steel |
| Shaft Key / Nut |
Steel |
| Motor Shaft |
Steel |
| Bypass Valve Piston |
Acetyl Resin |
| Bypass Valve Seal |
Viton |
| Bypass Valve Spring |
Stainless Steel |
Performance
| Piusi Part Number (Pump Only) |
F0034000B |
F0034100C |
| Piusi Part Number (Pump CW 2m Cable & Clips) |
F00340010 |
F00341010 |
| Voltage / Frequency |
12vDC |
Dual 12/24vDC |
| kW |
|
|
| Amps |
35 |
25 @ 12v / 16 @ 24v |
| RPM |
2900 |
1800 @ 12v / 3500 @ 24v |
| Duty Cycle |
30 Min |
30 Min |
| Cable Length |
2 m |
2 m |
| Bypass Valve Y/N |
Y |
Y |
| Max Flow (Open) |
56 lpm |
35 lpm @ 12v / 70 lpm @ 24v |
| Discharge Pressure |
|
|
| Max Suction Lift (Dry) |
3 m |
3 m |
| Max Suction Lift (Wet) |
|
|
| Inlet Fitting |
1" BSP + Flange |
1" BSP + Flange |
| Outlet Fitting |
1" BSP + Flange |
1" BSP + Flange |
| Max Particle Tolerance |
100 Micron |
100 Micron |
| Max Liquid Temp |
57° |
57° |
| Min Liquid Temp |
|
|
| Max Room Temp |
40° |
40° |
| Min Room Temp |
|
|
| Thermal Protection Y/N |
Y |
Y |
| Max Liquid Viscosity |
Diesel |
Diesel |
| Ingress Protection |
IP55 |
IP55 |
| Weight |
7.5 kg |
7.5 kg |
