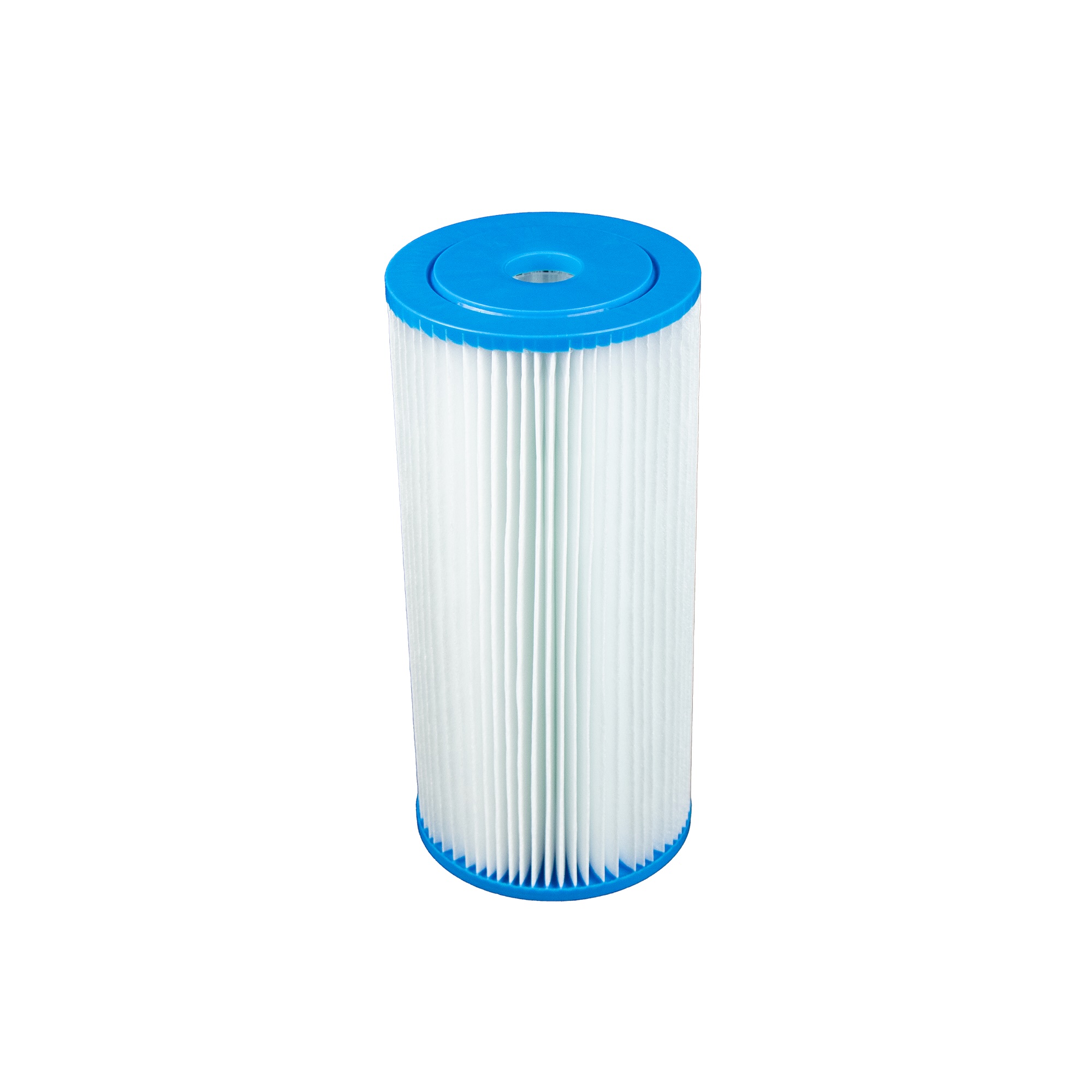

Spectrum Pleat2 - EPE Filter Elements, Pleated Polyester
The EPE series provides economical filtration with a high surface area and substantial flow potential, all while maintaining a low pressure drop. End-caps eliminate the need for gaskets and maintain the integrity of the pleat pack, further supported by the robust inner polypropylene core. The resilient media is versatile, suitable for applications ranging from borehole and river water to harsher chemicals.

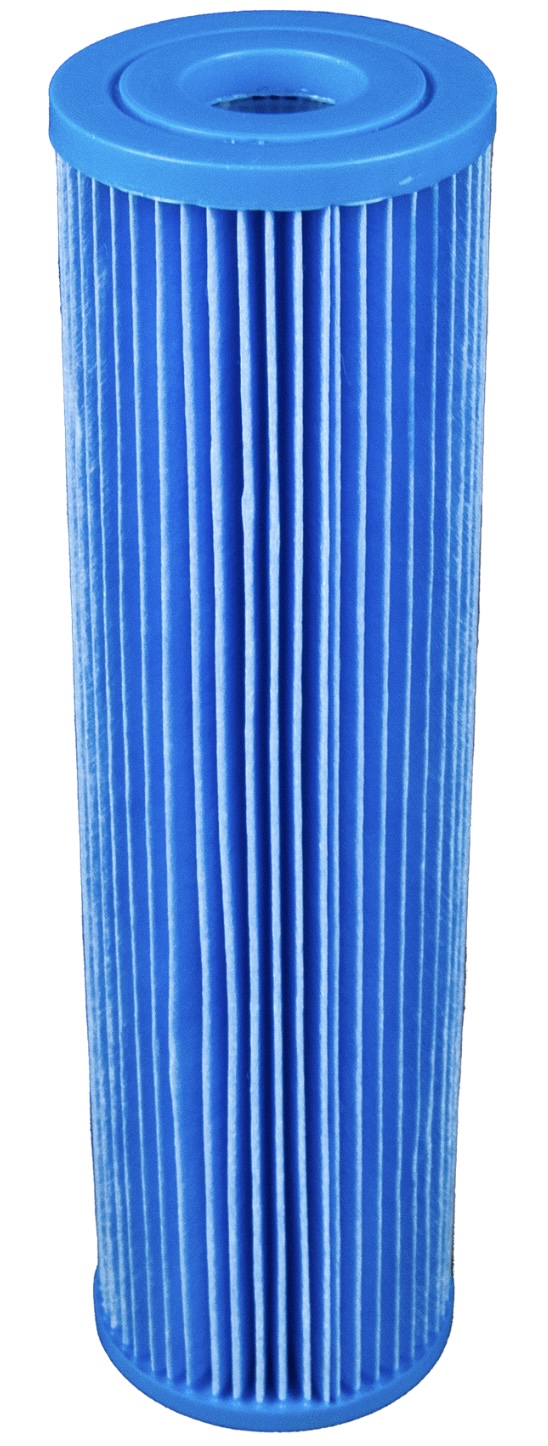

For enhanced microbial protection, the EPE-AM variant incorporates advanced antimicrobial properties. This ensures superior performance by inhibiting the growth of bacteria and other microorganisms, making it ideal for sensitive applications. Tailored for use in private water applications, EPE-AM provides an extra layer of safety and reliability, extending the lifespan of the filter and maintaining water hygiene.
Features & Benefits
- Almost 7 times the surface area of a depth cartridge.
- Pleated construction maximises the amount of filtration media, optimising service life.
- Thermally welded seams and end-caps maintain integrity.
- EPE 0.5 and 1 micron feature dual layer media ensuring efficiency and protects from premature blinding.

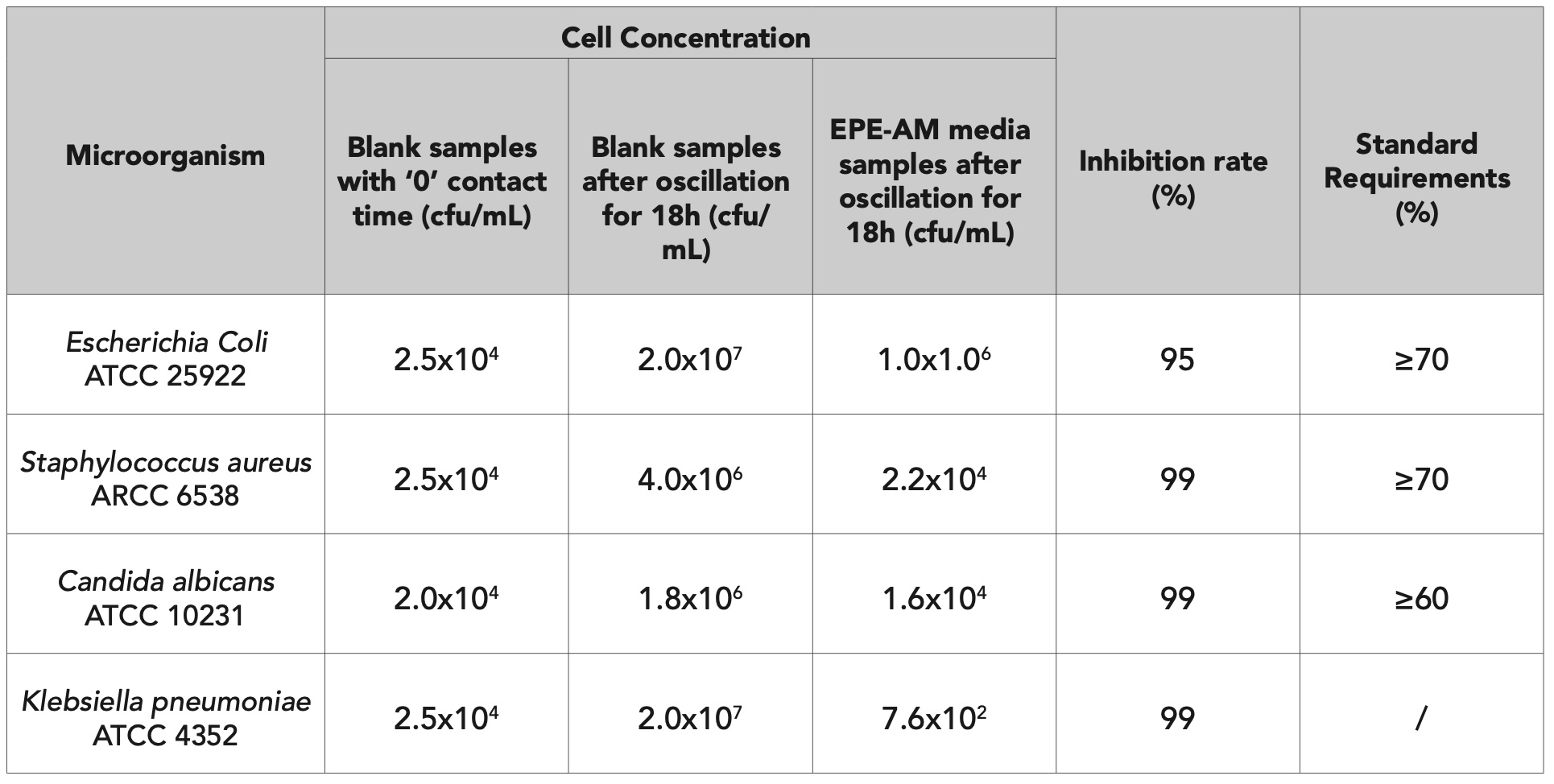

- EPE-AM is infused with an antimicrobial agent to protect against bacteria growth.
Materials of Construction| Media: | Polyester |
| EPE: | Polyester & Polypropyelene 0.5 & 1 micron |
| EPE-AM: | Polyester with Antimicrobial agent |
| End-cap: | Vinyl Plastisol |
| Seal: | Polypropylene |
Technical Data| Efficiency (%) | 90 |
| Maximum Operating Pressure Differential (bar) | 4 bar at 21°C |
| Maximum Operating Temperature (℃) | 38 |
| Surface Area (m²) | 0.35 per 9¾”, 1.21 per 9¾”LD |
Options - Standard Diameter| Length | Micron Rating | Part Number |
| 4,7/8 | 0.5 Micron | SPE 0.5 4,7/8 |
| 4,7/8" | 1 Micron | SPE 1 4,7/8 |
| 4,7/8" | 5 Micron | SPE 5 4,7/8 |
| 4,7/8" | 10 Micron | SPE 10 4,7/8 |
| 4,7/8" | 20 Micron | SPE 20 4,7/8 |
| 4,7/8 | 30 Micron | SPE 30 4,7/8 |
| 4,7/8" | 50 Micron | SPE 50 4,7/8 |
| 9,3/4" | 0.5 Micron | SPE 0.5 9,3/4 |
| 9,3/4" | 1 Micron | SPE 1 9,3/4 |
| 9,3/4" | 5 Micron | SPE 5 9,3/4 |
| 9,3/4" | 10 Micron | SPE 10 9,3/4 |
| 9,3/4" | 20 Micron | SPE 20 9,3/4 |
| 9,3/4" | 30 Micron | SPE 30 9,3/4 |
| 9,3/4" | 50 Micron | SPE 50 9,3/4 |
| 20" | 0.5 Micron | SPE 0.5 20 |
| 20" | 1 Micron | SPE 1 20 |
| 20" | 5 Micron | SPE 5 20 |
| 20" | 10 Micron | SPE 10 20 |
| 20" | 20 Micron | SPE 20 20 |
| 20" | 30 Micron | SPE 30 20 |
| 20" | 50 Micron | SPE 50 20 |
| 30" | 0.5 Micron | SPE 0.5 30 |
| 30" | 1 Micron | SPE 1 30 |
| 30" | 5 Micron | SPE 5 30 |
| 30" | 10 Micron | SPE 10 30 |
| 30" | 20 Micron | SPE 20 30 |
| 30" | 30 Micron | SPE 30 30 |
| 30" | 50 Micron | SPE 50 30 |
| 40" | 0.5 Micron | SPE 0.5 40 |
| 40" | 1 Micron | SPE 1 40 |
| 40" | 5 Micron | SPE 5 40 |
| 40" | 10 Micron | SPE 10 40 |
| 40" | 20 Micron | SPE 20 40 |
| 40" | 30 Micron | SPE 30 40 |
| 40" | 50 Micron | SPE 50 40 |
Options - Wide Diameter| Length | Micron Rating | Part Number |
| 9,3/4 | 0.5 Micron | SPE 0.5 9,3/4BB |
| 9,3/4" | 1 Micron | SPE 1 9,3/4BB |
| 9,3/4" | 5 Micron | SPE 5 9,3/4BB |
| 9,3/4" | 10 Micron | SPE 10 9,3/4BB |
| 9,3/4" | 20 Micron | SPE 20 9,3/4BB |
| 9,3/4" | 30 Micron | SPE 30 9,3/4BB |
| 9,3/4" | 50 Micron | SPE 40 9,3/4BB |
| 20" | 0.5 Micron | SPE 0.5 20BB |
| 20" | 1 Micron | SPE 1 20BB |
| 20" | 5 Micron | SPE 5 20BB |
| 20" | 10 Micron | SPE 10 20BB |
| 20" | 20 Micron | SPE 20 20BB |
| 20" | 30 Micron | SPE 30 20BB |
| 20" | 50 Micron | SPE 50 20BB |
When replacing elements in filter housings with screw-on bowls we always recommend the use of Silicon O Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O Ring
Download Spectrum Pleat2 EPE - Datasheet PDF
