Tinned, Braided Copper, Grounding Cable with RACO Clip
  • Click to enlarge

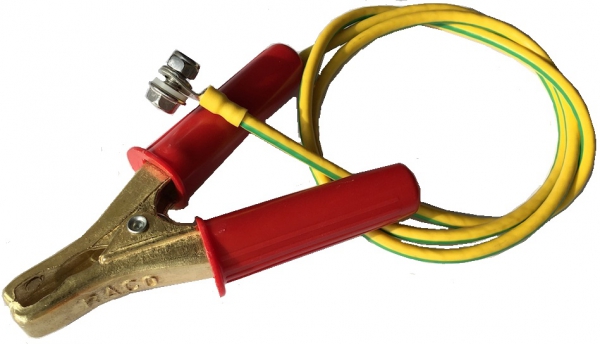

Tinned, Braided Copper, Grounding Cable with RACO Clip

  • Manufactured by Oilybits in our U.K. production facility.
  • Polyolefin yellow/green stripe, heat shrink cable sheath - the correct colour for earthing applications and fully resistant to Oils, unlike PVC.
  • 6mm2 tinned copper, braided cable for greater resistance to acidic / oxidised oils.
  • Choice of cable length.
  • Cable end terminals are fused with solder to prevent fraying, loosening, and contamination / corrosion of the cable, thereby ensuring a stable ground connection.
  • RACO, cast brass, 70mm grounding clip, with red handles.
  • 304 stainless steel nuts and bolts throughout, featuring Nyloc Nuts or Shake-proof Washers to prevent loosening, thereby ensuring a stable ground connection.
  • Nylon inner seal on vessel bolt, to prevent leakage of contents above the terminal. Oil resistant.
  • A superior product to that of our competition.

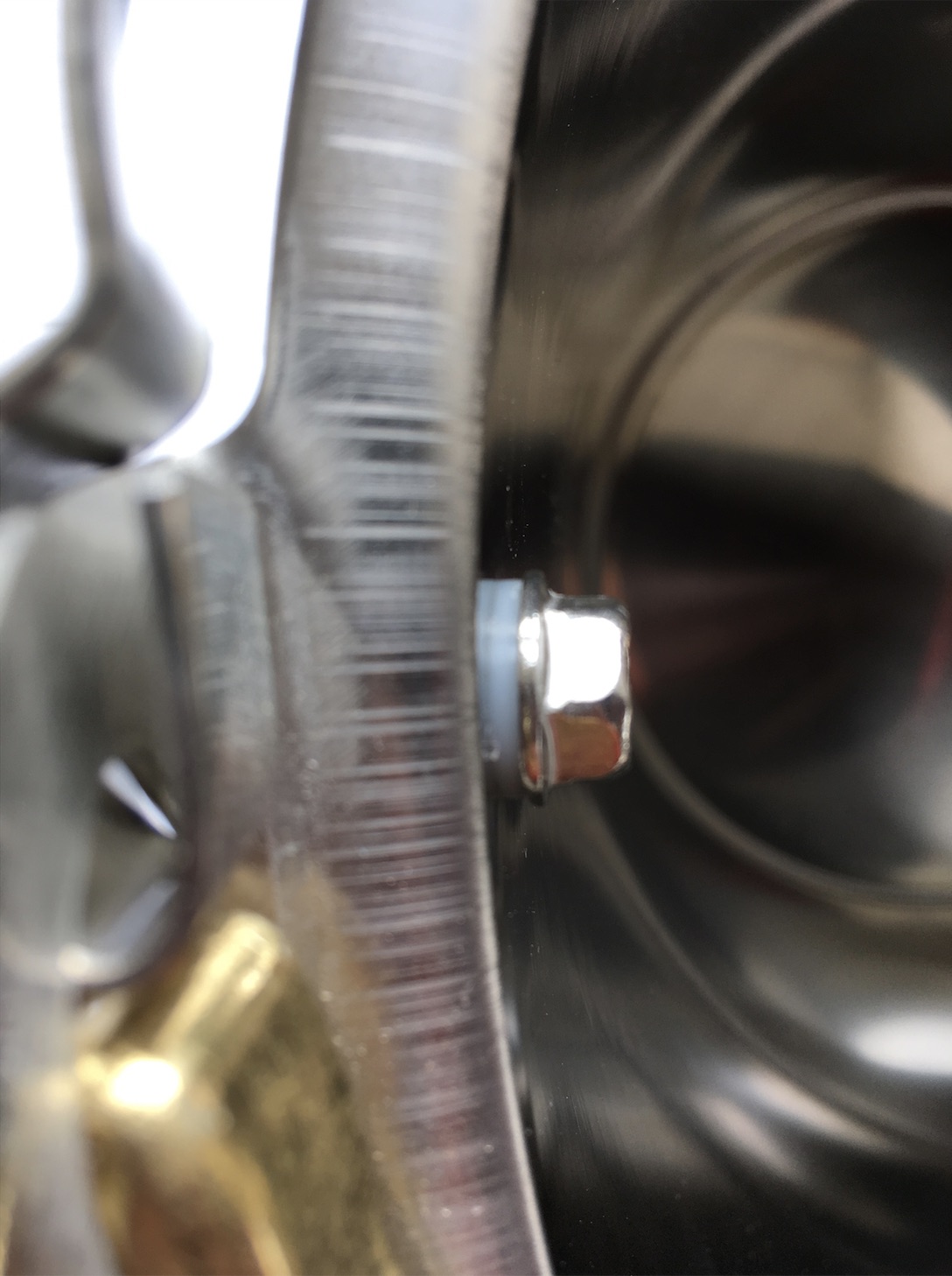

Shown Below - Soldered terminal end & nylon bolt seal.

Grounding Cable Specifications
Cable C.S. Area Cable Material Terminal Material RACO Clip Material Sheath Material Fixing Material Seal Material Assembly Weight
6mm2 Tin Plated Copper Tin Plated Aluminium Cast Brass Green/Yellow Striped Polyolefin 304 Stainless Steel with Nylon Locking Nut Nylon, Natural 190g (1m)

Download RACO Clip, Drawing PDFDownload RACO Clip, Drawing PDF
