TODO NGX Breakaway Couplings, ATEX Approved
  • Click to enlarge

TODO NGX Breakaway Couplings, ATEX Approved

ALWAYS EMAIL US FOR BEST PRICES ON TODO!

TODO takes its long history and reputation of being the global safety coupling leader and combines it with Next Generation design thinking. The NGX series offers flow optimisation with the latest innovations in handling and performance to bring you an industry leading range of Safety Break-Aways.

The TODO Next Generation Break-Away has been designed to eliminate spillage and damage associated with drive away/pull away incidents when loading/unloading hazardous liquids.

In the event of a drive/pull away incident, the break pins are subjected to breaking force and eventually shear, causing the two halves of the Break-Away to separate. At this point, the two halves rapidly close off, preventing liquid/gas from escaping from the now broken line.

This safety mechanism prevents damage to the loading system, while ensuring minimal product loss.

Features:

  • Extremely quick closing time
  • Minimum loss of product
  • Suitable for a wide range of applications

Benefits:

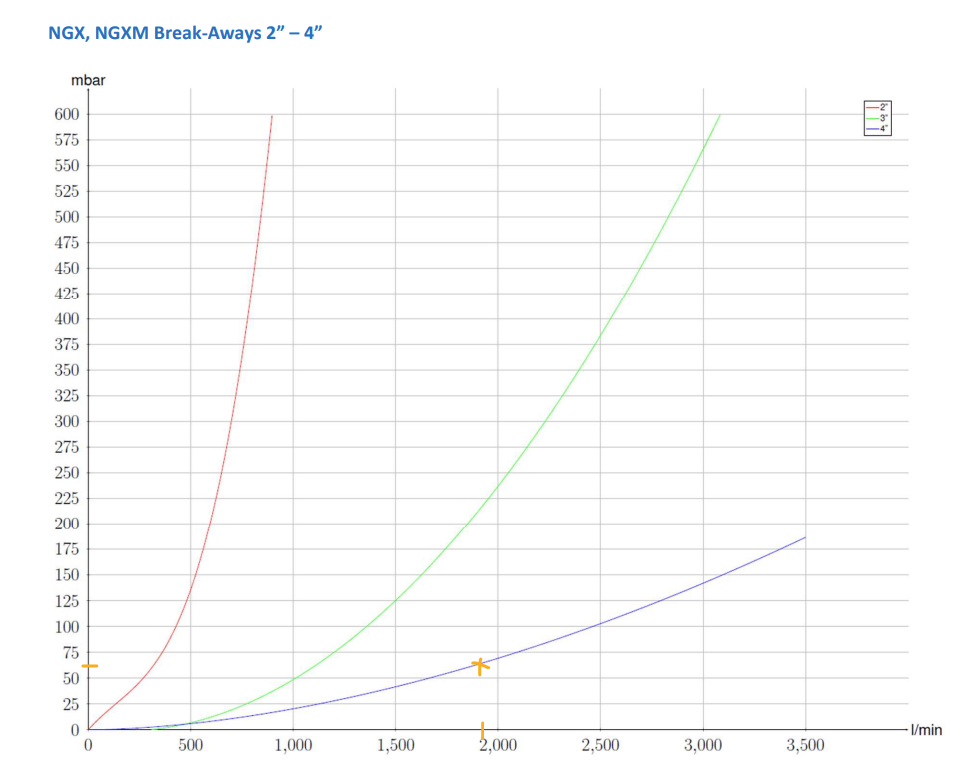

  • Faster loading/unloading due to the optimised flow rates offered
  • Simple to retrofit onto Loading Arms
  • Easier to handle when loading/unloading
  • Reduced maintenance due to internal redesign and new seal placement
  • Easy to reset on-site, saving time, saving money

Applications:

  • Chemical
  • Oil
  • Pharmaceuticals
  • Tank Trucks/Depots
  • Railcars
  • Containers

Standards:

  • 2014/68/EU – Pressure Equipment Directive
  • 2014/34/EU – ATEX
  • BS EN ISO9001:2015
Features:
Sizes:DN50 2", DN80 3", DN100 4" and DN150 6"
Materials:Body: Aluminium, Stainless Steel (316L)
Seals:FKM (Viton) as standard. NBR (Nitrile), Chemraz, or Kalrez also available
Working Temperature-20°C(-4°F)-+80°C(176°F)
Working pressure:Up to 40 bar (580 psi)
Test pressure:Up to 60 bar (870 psi)
Possible Break Angle0-90°c
End connections:NPT / BSP / PN10/16 / PN25/40 / ANSI 150 / ANSI 300 / TTMA

Download TODO General Product Brochure, PDFDownload TODO General Product Brochure PDF

Download TODO NGX Breakaway Couplings, Technical Brochure PDFDownload TODO NGX Breakaway Couplings, Technical Brochure PDF

Download TODO NGX Breakaway Couplings, Introduction PDFDownload TODO NGX Breakaway Couplings, Introduction PDF
