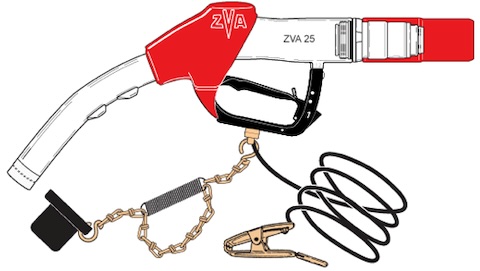

ZVA 25, Automatic High-Flow Fuel Dispensing Nozzle (140 lpm), ATEX Approved
  • Click to enlarge

ZVA 25, Automatic High-Flow Fuel Dispensing Nozzle (140 lpm), ATEX Approved

Aluminium Body, Anodised Aluminium Spout, Polyurethane/NBR Seals.

For commercial vehicles / plant use only due to large spout diameter, will not fit cars.

  • Patented venturi type automatic shut-off with safety cut-out attitude valve.
  • Built-in check valve
  • 3-speed lever latch with removeable latch pin EB 280

Suitable For;

  • Aliphatic Hydrocarbons: Petrol/Gasoline, Diesel, Jet Fuels, Diesel, Fuel Oils, Kerosene

An automatic shut-off nozzle can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems

Approved for use in ATEX areas - SIRA Certificate Number 03ATEX9487U, Category - Ex II 1 G

There are various options available for ZVA Slimline Nozzles, these include a choice of Guard, and Nozzle patterns. Most of the time a standard Guard and Nozzle are used, however for existing installations where the dispensing pump system has been designed to accept a specific (or older) style of nozzle, then the existing style can be selected to ensure compatibility with the Nozzle Holster

PLEASE NOTE THAT DUE TO NOZZLES BEING MADE TO ORDER, THERE IS A 30.00 GBP CHARGE FOR NOZZLES ORDERED INCORRECTLY THAT NEED TO BE RE-WORKED

Specification
Inlet1" BSP Female
Spout Diameter28.5 mm
Trigger CatchYes, 3 Position
Swivel IncludedYes
Min Flow rate0 lpm
Max Flow rate140 lpm
Min Back Pressure7 PSI / 0.5 Bar
Max Back Pressure50 PSI / 3.5 Bar
Weight1.5 Kg
Wetted Components
BodyAluminium
SealsPolyurethane/NBR
SpringStainless Steel
Main StemBronze
Valve SeatAcetyl (Delrin)
DiaphragmPTFE
SwivelBrass
Options
Guard TypeInlet TypeHose ConnectionPart Number
EG281.1Swivel1" BSP MaleZVA 25.1
EG281.2Swivel1" BSP MaleZVA 25.2
EG281.3Swivel1" BSP MaleZVA 25.3
EG281.3Swivel1" BSP MaleZVA 25.3 M
EG281.4Swivel1" BSP MaleZVA 25.4
EG281.4Swivel1" BSP FemaleZVA 25.41
EG281.4Swivel1" NPT FemaleZVA 25.45
EG281.4Swivel1" BSP MaleZVA 25.4 M1
EG281.6Swivel1" BSP FemaleZVA 25.61
EG281.6BSwivel1" BSP MaleZVA 25.6 B
EG281.8Swivel1" BSP MaleZVA 25.8
EG281.8DSwivel1" BSP MaleZVA 25.8 DM rm

Download ZVA 25 - Catalogue Page PDFDownload ZVA 25 - Catalogue Page PDF

Product Options

£312.00


Product CodeElaflex_ZVA_25
ConditionNew
