Pentek, Pentair Slimline 10" Polypropylene / Polycarbonate Filter Housing

Pentair Pentek Slim Line Filter Housings are available in either reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5", 10" and 20" lengths. The black or blue reinforced polypropylene housing caps are available with 1/4", 3/8" or 1/2" connections. Four bosses are molded into every cap for mounting purposes.

They are equipped with a black, reinforced polypropylene cap and offer an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.

Opaque Slim Line Filter Housings, molded from rugged reinforced polypropylene, offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include under-sink and countertop residential filtration, pre- and post-reverse osmosis filtration, recreational vehicle filtration, foodservice and humidifying systems.

Clear Slim Line Filter Housings offer on-site examination of flow, performance, and cartridge life. They are also ideal for a variety of applications.

  • Manufactured from virgin polypropylene (opaque) or styrene-acrylonitrile (clear)
  • Slim design reduces space required for installation without sacrificing capacity
  • Available in 5", 10" and 20" lengths
  • Optional pressure relief/bleed button on inlet side of cap
  • Leak-proof seal
  • Easy to install, operate and maintain
  • British standard threads
  • Buna-N O-ring
  • FDA compliant
  • Meets BS6920 and WRAS standards

FILTER ELEMENT NOT INCLUDED, PLEASE ORDER THESE SEPERATELY HERE

Features
Dispensing Means Gravity or Pumped
Standard Filter 10" Particulate Only
Inlet / Outlet Fittings Various, See Options
Bowl Material Polycarbonate or Polypropylene
Size 12" Deep, 5" Diameter
Max Flow Limited by type of element used
Max Pressure Unknown
Product Options
Our Part Number Other Part Number Our Description Standard Seal Material Housing Length Fitting Size With Air Release
NO10SLBL1/4"WO/PR 158114 Slimline Blue, 1/4" BSP NBR 10" 1/4" BSP Female No
NO10SLWH1/4"W/PR 158182 Slimline White, 1/4" BSP, With Air Release NBR 10" 1/4" BSP Female Yes
NO10SLWH1/4"W/PR 158125 Slimline White, 1/4" BSP NBR 10" 1/4" BSP Female No
NO10SLBL3/8"W/PRBT 158087 Slimline Blue, 3/8" BSP, With Air Release NBR 10" 3/8" BSP Female Yes
NO10SLBL3/8"WO/PRBT 158208 Slimline Blue, 3/8" BSP NBR 10" 3/8" BSP Female No
NO10SLBL1/2"W/PRBT 158207 Slimline Blue, 1/2" BSP, With Air Release NBR 10" 1/2" BSP Female Yes
NO10SLBL1/2"WO/PRBT 158208 Slimline Blue, 1/2" BSP NBR 10" 1/2" BSP Female No
NO103GSLBK/BL1/4"QCIB 158671 3G Slimline Blue, 1/4" Q/C, Integral Bracket NBR 10" 1/4" Quick-Connect No
NO103GSLBK/BL3/8"BTIBW/PR 158632 3G Slimline Blue, 3/8" BSP, Integral Bracket, With Air Release NBR 10" 3/8" BSP Female Yes
NO103GSLWH/WH3/8"QCIBW/PR 158647 3G Slimline White, 3/8" Q/C, Integral Bracket, With Air Release NBR 10" 3/8" Quick-Connect Yes
NO103GSLBK/BL1/2"BTMBW/PR 158588 3G Slimline Blue, 1/2" BSP, With Air Release NBR 10" 1/2" BSP Female Yes
NO103GSLBK/BL1/2"BTIBW/PR 158628 3G Slimline Blue, 1/2" BSP, Integral Bracket, With Air Release NBR 10" 1/2" BSP Female Yes
NO103GSLBK/BL1/2"BTMBWO/PR 158589 3G Slimline Blue, 1/2" BSP NBR 10" 1/2" BSP Female No
NO10SLCL1/4"W/PRBT 158117 Slimline Clear, 1/4" BSP, With Air Release NBR 10" 1/4" BSP Female Yes
NO10SLCL3/8"WO/PRBT 158090 Slimline Clear, 3/8" BSP NBR 10" 3/8" BSP Female No
NO10SLCL1/2"W/PRBT 158218 Slimline Clear, 1/2" BSP, With Air Release NBR 10" 1/2" BSP Female Yes
NO10SLCL1/2"WO/PRBT 158219 Slimline Clear, 1/2" BSP NBR 10" 1/2" BSP Female No
NO103GSLBL/CL1/2"BTMBW/PR 158590 3G Slimline Clear, 1/2" BSP, With Air Release NBR 10" 1/2" BSP Female Yes
NO103GSLBL/CL1/2"BTIBW/PR 158630 3G Slimline Clear, 1/2" BSP, Integral Bracket, With Air Release NBR 10" 1/2" BSP Female Yes
NO103GSLBL/CL1/2"BTIB 158631 3G Slimline Clear, 1/2" BSP, Integral Bracket NBR 10" 1/2" BSP Female No
SW2   Spanner
MC1-KIT   Mounting Bracket (For housings without Integral Bracket)
NO5/SL-ORING-BUNA   Spare - Slimline Seal Kit - NBR
NO5/SL-ORING-EPDM   Spare - Slimline Seal Kit - EPDM
NO5/SL-ORING-VITON   Spare - Slimline Seal Kit - Viton
NO5/SL-ORING-SILICONE   Spare - Slimline Seal Kit - Silicone

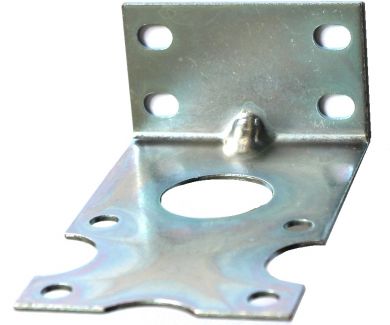

Optional Fitting Bracket Pictured Below;

When replacing elements in filter housings with screw-on bowls we always recommend the use of Silicon O Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O Ring

Download Pentair Slimline Housing - Specifications PDFDownload Pentair Slimline Housing - Specifications PDF

Download Pentair 3G Slimline Housing - Specifications PDFDownload Pentair 3G Slimline Housing - Specifications PDF

Download Poly Filter Housing - Instructions PDFDownload Poly Filter Housing - Instructions PDF
