Pentek, Pentair Slimline 10" Polypropylene / Polycarbonate Filter Housing
  • Click to enlarge

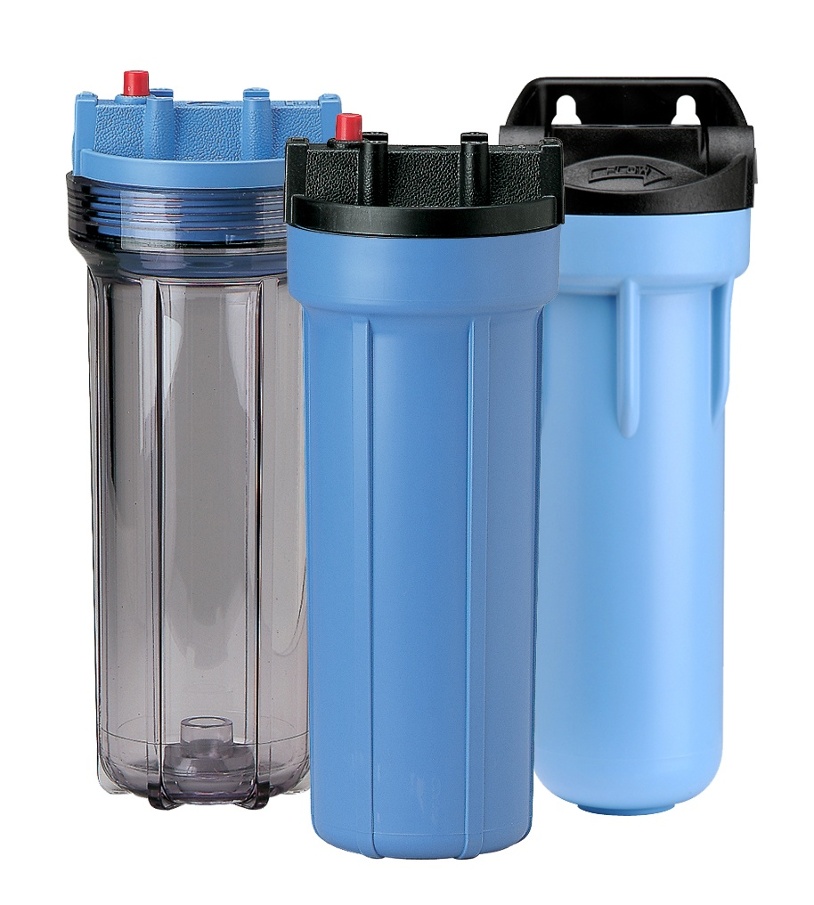

Pentek, Pentair Slimline 10" Polypropylene / Polycarbonate Filter Housing

Pentair Pentek Slim Line Filter Housings are available in either reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5", 10" and 20" lengths. The black or blue reinforced polypropylene housing caps are available with 1/4", 3/8" or 1/2" connections. Four bosses are molded into every cap for mounting purposes.

They are equipped with a black, reinforced polypropylene cap and offer an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.

Opaque Slim Line Filter Housings, molded from rugged reinforced polypropylene, offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include under-sink and countertop residential filtration, pre- and post-reverse osmosis filtration, recreational vehicle filtration, foodservice and humidifying systems.

Clear Slim Line Filter Housings offer on-site examination of flow, performance, and cartridge life. They are also ideal for a variety of applications.

  • Manufactured from virgin polypropylene (opaque) or styrene-acrylonitrile (clear)
  • Slim design reduces space required for installation without sacrificing capacity
  • Available in 5", 10" and 20" lengths
  • Optional pressure relief/bleed button on inlet side of cap
  • Leak-proof seal
  • Easy to install, operate and maintain
  • British standard threads
  • Buna-N O-ring
  • FDA compliant
  • Meets BS6920 and WRAS standards

FILTER ELEMENT NOT INCLUDED, PLEASE ORDER THESE SEPERATELYHERE

Features
Dispensing MeansGravity or Pumped
Standard Filter10" Particulate Only
Inlet / Outlet FittingsVarious, See Options
Bowl MaterialPolycarbonate or Polypropylene
Size12" Deep, 5" Diameter
Max FlowLimited by type of element used
Max PressureUnknown
Product Options
Our Part NumberOther Part NumberOur DescriptionStandard Seal MaterialHousing LengthFitting SizeWith Air Release
NO10SLBL1/4"WO/PR158114Slimline Blue, 1/4" BSPNBR10"1/4" BSP FemaleNo
NO10SLWH1/4"W/PR158182Slimline White, 1/4" BSP, With Air ReleaseNBR10"1/4" BSP FemaleYes
NO10SLWH1/4"W/PR158125Slimline White, 1/4" BSPNBR10"1/4" BSP FemaleNo
NO10SLBL3/8"W/PRBT158087Slimline Blue, 3/8" BSP, With Air ReleaseNBR10"3/8" BSP FemaleYes
NO10SLBL3/8"WO/PRBT158208Slimline Blue, 3/8" BSPNBR10"3/8" BSP FemaleNo
NO10SLBL1/2"W/PRBT158207Slimline Blue, 1/2" BSP, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO10SLBL1/2"WO/PRBT158208Slimline Blue, 1/2" BSPNBR10"1/2" BSP FemaleNo
NO103GSLBK/BL1/4"QCIB1586713G Slimline Blue, 1/4" Q/C, Integral BracketNBR10"1/4" Quick-ConnectNo
NO103GSLBK/BL3/8"BTIBW/PR1586323G Slimline Blue, 3/8" BSP, Integral Bracket, With Air ReleaseNBR10"3/8" BSP FemaleYes
NO103GSLWH/WH3/8"QCIBW/PR1586473G Slimline White, 3/8" Q/C, Integral Bracket, With Air ReleaseNBR10"3/8" Quick-ConnectYes
NO103GSLBK/BL1/2"BTMBW/PR1585883G Slimline Blue, 1/2" BSP, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO103GSLBK/BL1/2"BTIBW/PR1586283G Slimline Blue, 1/2" BSP, Integral Bracket, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO103GSLBK/BL1/2"BTMBWO/PR1585893G Slimline Blue, 1/2" BSPNBR10"1/2" BSP FemaleNo
NO10SLCL1/4"W/PRBT158117Slimline Clear, 1/4" BSP, With Air ReleaseNBR10"1/4" BSP FemaleYes
NO10SLCL3/8"WO/PRBT158090Slimline Clear, 3/8" BSPNBR10"3/8" BSP FemaleNo
NO10SLCL1/2"W/PRBT158218Slimline Clear, 1/2" BSP, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO10SLCL1/2"WO/PRBT158219Slimline Clear, 1/2" BSPNBR10"1/2" BSP FemaleNo
NO103GSLBL/CL1/2"BTMBW/PR1585903G Slimline Clear, 1/2" BSP, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO103GSLBL/CL1/2"BTIBW/PR1586303G Slimline Clear, 1/2" BSP, Integral Bracket, With Air ReleaseNBR10"1/2" BSP FemaleYes
NO103GSLBL/CL1/2"BTIB1586313G Slimline Clear, 1/2" BSP, Integral BracketNBR10"1/2" BSP FemaleNo
SW2 Spanner
MC1-KIT Mounting Bracket (For housings without Integral Bracket)
NO5/SL-ORING-BUNA Spare - Slimline Seal Kit - NBR
NO5/SL-ORING-EPDM Spare - Slimline Seal Kit - EPDM
NO5/SL-ORING-VITON Spare - Slimline Seal Kit - Viton
NO5/SL-ORING-SILICONE Spare - Slimline Seal Kit - Silicone

Optional Fitting Bracket Pictured Below;

When replacing elements in filter housings with screw-on bowls we always recommend the use of Silicon O Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O Ring

Download Pentair Slimline Housing - Specifications PDFDownload Pentair Slimline Housing - Specifications PDF

Download Pentair 3G Slimline Housing - Specifications PDFDownload Pentair 3G Slimline Housing - Specifications PDF

Download Poly Filter Housing - Instructions PDFDownload Poly Filter Housing - Instructions PDF
