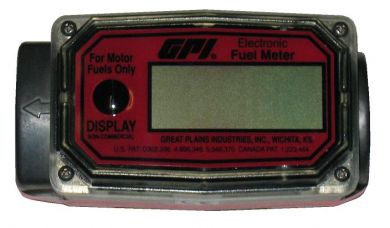

Great Plains Industries / GPI 01 Series Turbine Flow Meter, Aluminium
This meter will display a batch (resettable) total, and a cumulative total (resettable by removal of the batteries) of the liquid passing through it, it will not show the ‘flow-rate’ in ‘litres per minute’ that is flowing through at a given time. See GPI A1 or G2 for flow-rate meters
This meter states on its display "For Motor Fuels Only" this is because it has been factory calibrated to measure Diesel, although it is chemically compatible with many other fluids of similar viscosity which it can also be used with, including Kerosene, and Bio Diesel up to B20
Optional Lexan Cover helps to protect from accidental damage
Approvals
- European;CE - EMC Directive 89/336/EEC
Features & Performance| GPI Part Number | 113255-12 |
| Display | Digital |
| Power Source | 2x AAA Batteries |
| Minimum Flow Rate | 10 lpm |
| Maximum Flow Rate | 100 lpm |
| Maximum Viscosity | 100 Centipoises |
| Accuracy | ±5.0% |
| Temperature Range | -10° to +54° Celcius |
| Maximum Pressure | 21 Bar |
| Factory Calibration | Yes |
| User Calibration | No |
| Inlet / Outlet Fittings | 1" BSP Female Threaded |
Wetted Components| Housing | Nylon 6-6 |
| Journal Bearings | Ceramic |
| Shaft | Tungsten Carbide |
| Rotor | Nylon 6-6 |
| Rings | 316 Stainless Steel |
| Signal Generators | Ferrite (Ceramic Magnet) |
Download GPI 01A Meter Owners Manual PDF
