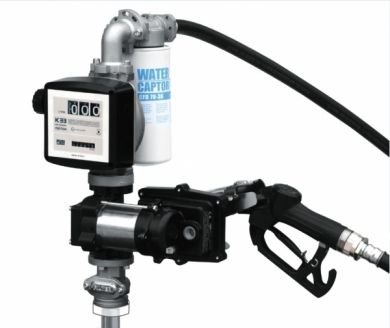

Piusi EX50 Drum, Vane Pump & Meter Drum Kit, ATEX Approved
  • Click to enlarge

Piusi EX50 Drum, Vane Pump & Meter Drum Kit, ATEX Approved

For full product details refer to the below Piusi PDF downloads or Piusi.com

Suitable for:

  • Diesel
  • Kerosene
  • Petrol
  • Petrol + 15% Ethanol
  • Avgas 100 / 100LL (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
  • Jet A / A1 (Pump & Meter Only - ask us about compatable Hose, Filters, Nozzle)
  • Aspen 2/4
Specifications
Piusi Part NumberF0037500AF0037501AF0037502AF0037503AF0037600BF0037601B
Piusi DescriptionDrum EX50 12V DC K33 ATEX + Manual NozzleDrum EX50 12V DC K33 ATEX + Auto NozzleDrum EX50 12V DC K33 ATEX + Manual Nozzle + CableDrum EX50 12V DC K33 ATEX + Auto Nozzle + CableDrum EX50 230V DC K33 ATEX + Manual NozzleDrum EX50 230V DC K33 ATEX + Auto Nozzle
Utilises Piusi PumpPiusi EX50Piusi EX50Piusi EX50Piusi EX50Piusi EX50Piusi EX50
Utilises Piusi NozzlePiusi Self 3000 ATEXPiusi A60 ATEXPiusi Self 3000 ATEXPiusi A60 ATEXPiusi Self 3000 ATEXPiusi A60 ATEX
Utilises Piusi Flow MeterPiusi K33 ATEXPiusi K33 ATEXPiusi K33 ATEXPiusi K33 ATEXPiusi K33 ATEXPiusi K33 ATEX
Utilises Piusi FilterPiusi Water Captor, 30 MicronPiusi Water Captor, 30 MicronPiusi Water Captor, 30 MicronPiusi Water Captor, 30 MicronPiusi Water Captor, 30 MicronPiusi Water Captor, 30 Micron
Voltage / Frequency12vDC12vDC12vDC12vDC230vAC 50-60Hz (EU)230vAC 50-60Hz (EU)
Maximum UsersNANANANANANA
kW0.250.250.250.250.250.25
Amps2121212111
Hose Length4 m4 m4 m4 m4 m4 m
Hose ID3/4"3/4"3/4"3/4"3/4"3/4"
Bypass Valve Y/NYYYYYY
Max Flow50 lpm50 lpm50 lpm50 plm50 lpm50 lpm
Discharge Pressure1.6 Bar1.6 Bar1.6 Bar1.6 Bar1.6 Bar1.6 Bar
Max Suction Lift (Dry)1.1 m1.1 m1.1 m1.1 m1.1 m1.1 m
Max Suction Lift (Wet)1.1 m1.1 m1.1 m1.1 m1.1 m1.1 m
Inlet Fitting1" BSP1" BSP1" BSP1" BSP1" BSP1" BSP
Outlet Fitting1" BSP1" BSP1" BSP1" BSP1" BSP1" BSP
Max Particle Tolerance100 Micron100 Micron100 Micron100 Micron100 Micron100 Micron
Thermal Protection Y/NYYYYYY
Max Liquid ViscosityDieselDieselDieselDieselDieselDiesel
Ingress ProtectionIP55IP55IP55IP55IP55IP55
Weight12 kg12 kg12 kg12 kg12 kg12 Kg
Accuracy±1%±1%±1%±1%±1%±1%

Download Piusi EX50 Drum Pump  Kit - Catalogue Page PDFDownload Piusi EX50 Drum Pump Kit - Catalogue Page PDF

Download Piusi EX50 AC & DC ATEX Certificate PDFDownload Piusi EX50 AC & DC ATEX Certificate PDF
