Richter Dipping Tape, Aluminium Frame, Carbon Steel Tape, NOT IPM Specification
  • Click to enlarge

Richter Dipping Tape, Aluminium Frame, Carbon Steel Tape, NOT IPM Specification

ALWAYS EMAIL US FOR BEST PRICES ON RICHTER!

Supplied as standard with:

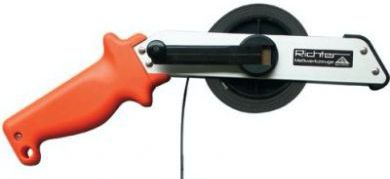

  • Lightweight Anodised Aluminium Frame, with High Impact Plastic Handle.
  • Etched, Carbon Steel Tape

To be added seperately, if required:

  • Weight. (The most common weight choice for Non-IPM aluminium frame tapes, are Weight L-1/2 (Brass) & Weight I-1/2 (Stainless))
  • Calibration Certificate. 1 Certificate is required per 1 Tape. Price is per certificate.
  • Conformity Certificate KON1. General Certificate, not serial number specific. Available per tape or per order showing all tapes listed on 1 certificate. Price is per certificate.

Features:

  • Conforms to EC Class II Accuracy - Accuracy Class II = +/- a + bL (a = 0,3 mm; b = 0,2 mm; L = length in m)
  • NOT IPM Approved
  • NOT Verifiable
  • 13 mm Wide, 0.2 mm Thick Hardened Steel Tape
  • 414 or 415 Tape, Single Side or Double Side Graduations
Reel, Tape & Weight Specifications
Graduations Part Number Length Richter Brochure Page
Single Side, Metric FR-D-414-ES-10 10 m 2.2
Single Side, Metric FR-D-414-ES-15 15 m 2.2
Single Side, Metric FR-D-414-ES-20 20 m 2.2
Single Side, Metric FR-D-414-ES-25 25 m 2.2
Single Side, Metric FR-D-414-ES-30 30 m 2.2
Single Side, Metric FR-D-414-ES-50 50 m 2.2
Double Side, Metric & Imperial FR-D-415-ES-10/33 (Inches, 1/16ths) 10 m / 33 ft 2.2
Double Side, Metric & Imperial FR-D-415-ES-15/50 (Inches, 1/16ths) 15 m / 50 ft 2.2
Double Side, Metric & Imperial FR-D-415-ES-20/66 (Inches, 1/16ths) 20 m / 66 ft 2.2
Double Side, Metric & Imperial FR-D-415-ES-25/82 (Inches, 1/16ths) 25 m / 82 ft 2.2
Double Side, Metric & Imperial FR-D-415-ES-30/100 (Inches, 1/16ths) 30 m / 100 ft 2.2
Double Side, Metric & Imperial FR-D-415-ES-50/165 (Inches, 1/16ths) 50 m / 165 ft 2.2
Refill Tape Specifications
Graduations Part Number Length Richter Brochure Page
Single Side, Metric FR-D-414-ESa-10 10 m Not Featured
Single Side, Metric FR-D-414-ESa-15 15 m Not Featured
Single Side, Metric FR-D-414-ESa-20 20 m Not Featured
Single Side, Metric FR-D-414-ESa-25 25 m Not Featured
Single Side, Metric FR-D-414-ESa-30 30 m Not Featured
Single Side, Metric FR-D-414-ESa-50 50 m Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-10/33 (Inches, 1/16ths) 10 m / 33 ft Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-15/50 (Inches, 1/16ths) 15 m / 50 ft Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-20/66 (Inches, 1/16ths) 20 m / 66 ft Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-25/82 (Inches, 1/16ths) 25 m / 82 ft Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-30/100 (Inches, 1/16ths) 30 m / 100 ft Not Featured
Double Side, Metric & Imperial FR-D-415-ESa-50/165 (Inches, 1/16ths) 50 m / 165 ft Not Featured
Weight Specifications
Part Number Material Weight Graduations Length Diameter Connection Method Richter Brochure Page
FR-WEIGHT-A-1 Brass 625 G Single Side 100 mm 45 mm Rivet 2.7
FR-WEIGHT-B-1 Brass 675 G Single Side 156 mm 30 mm Nickle Plated Clasp 2.7
FR-WEIGHT-B-2 Brass 675 G Double Side, Metric & Imperial 156 mm 30 mm Nickle Plated Clasp 2.7
FR-WEIGHT-C-1 Brass 200 G Single Side 70 mm 20 mm Rivet 2.7
FR-WEIGHT-C-2 Brass 200 G Double Side, Metric & Imperial 70 mm 20 mm Rivet 2.7
FR-WEIGHT-D-1 Brass 400 G Single Side 171 mm 22 mm Nickle Plated Clasp 2.7
FR-WEIGHT-D-2 Brass 400 G Double Side, Metric & Imperial 171 mm 22 mm Nickle Plated Clasp 2.7
FR-WEIGHT-E-1 Brass 400 G Single Side 103 mm 25 mm Grub Screw 2.7
FR-WEIGHT-E-2 Brass 400 G Double Side, Metric & Imperial 103 mm 25 mm Grub Screw 2.7
FR-WEIGHT-F-1 Brass 1000 G Single Side 100 mm 45 mm Grub Screw 2.7
FR-WEIGHT-G-1 Brass 500 G Single Side 171 mm 25 mm Nickle Plated Clasp 2.8
FR-WEIGHT-G-2 Brass 500 G Double Side, Metric & Imperial 171 mm 25 mm Nickle Plated Clasp 2.8
FR-WEIGHT-H-1 Brass 700 G Single Side 150 mm 30 mm Grub Screw 2.8
FR-WEIGHT-H-2 Brass 700 G Double Side, Metric & Imperial 150 mm 30 mm Grub Screw 2.8
FR-WEIGHT-I-1 Stainless Steel 4021 400 G Single Side 103 mm 25 mm Grub Screw 2.8
FR-WEIGHT-I-2 Stainless Steel 4021 400 G Double Side, Metric & Imperial 103 mm 25 mm Grub Screw 2.8
FR-WEIGHT-K-1 Brass 500 G Single Side 150 mm 25 mm Grub Screw 2.8
FR-WEIGHT-K-2 Brass 500 G Double Side, Metric & Imperial 150 mm 25 mm Grub Screw 2.8
FR-WEIGHT-L-0 Brass 400 G None 121 mm 25 mm Nickle Plated Clasp 2.8
FR-WEIGHT-L-1 Brass 400 G Single Side 121 mm 25 mm Nickle Plated Clasp 2.8
FR-WEIGHT-L-2 Brass 400 G Double Side, Metric & Imperial 121 mm 25 mm Nickle Plated Clasp 2.8
FR-WEIGHT-P-1 Brass 400 G Single Side 103 mm 25 mm Grub Screw 2.8
FR-WEIGHT-T-1 Stainless Steel 4021 1000 G Single Side 100 mm 45 mm Grub Screw 2.9
FR-WEIGHT-U-1 Stainless Steel 4021 400 G Single Side 121 mm 25 mm Nickle Plated Clasp 2.9
FR-WEIGHT-W-1 Brass 1500 G Single Side 156 mm 45 mm Nickle Plated Clasp 2.9
FR-WEIGHT-W-2 Brass 1500 G Double Side, Metric & Imperial 156 mm 45 mm Nickle Plated Clasp 2.9
FR-WEIGHT-X-1 Stainless Steel 4021 700 G Single Side 103 mm 35 mm Grub Screw 2.9
FR-WEIGHT-X-2 Stainless Steel 4021 700 G Single Side, Imperial 103 mm 35 mm Grub Screw 2.9
FR-WEIGHT-Y-1 Stainless Steel 4021 700 G Single Side 150 mm 30 mm Grub Screw 2.9
FR-WEIGHT-Y-2 Stainless Steel 4021 700 G Double Side, Metric & Imperial 150 mm 30 mm Grub Screw 2.9
FR-WEIGHT-S034 Brass 1200 G Single Side 246 mm 30 mm Push-Button Release 2.9
FR-WEIGHT-S034R Stainless Steel 4021 1200 G Single Side 246 mm 30 mm Push-Button Release 2.9
FR-WEIGHT-S059-0 TBC TBC None TBC TBC TBC Not Featured
FR-WEIGHT-S059-1 TBC TBC Single Side TBC TBC TBC Not Featured
FR-WEIGHT-S059-2 TBC TBC Double Side, Metric & Imperial TBC TBC TBC Not Featured
FR-WEIGHT-S059R-0 TBC TBC None TBC TBC TBC Not Featured
FR-WEIGHT-S059R-1 TBC TBC Single Side TBC TBC TBC Not Featured
FR-WEIGHT-S059R-2 TBC TBC Double Side, Metric & Imperial TBC TBC TBC Not Featured

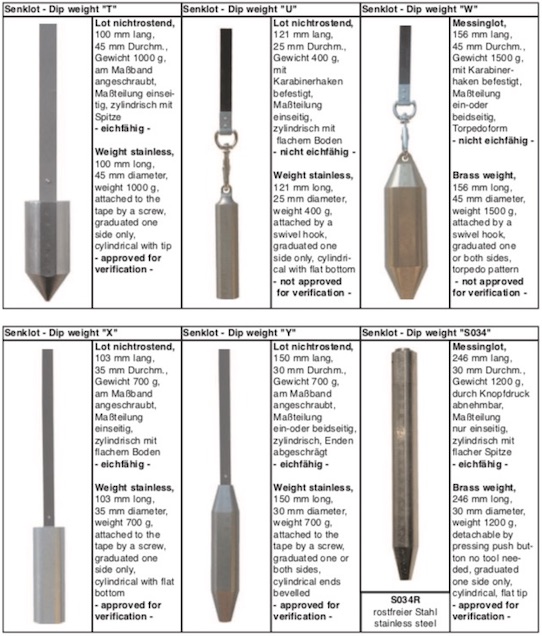

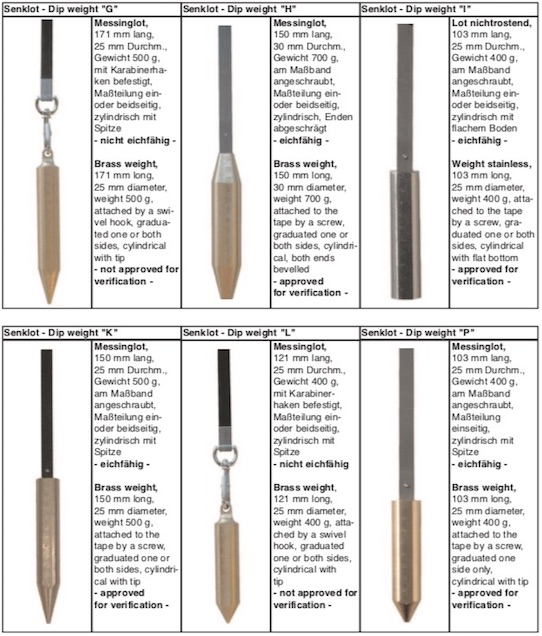

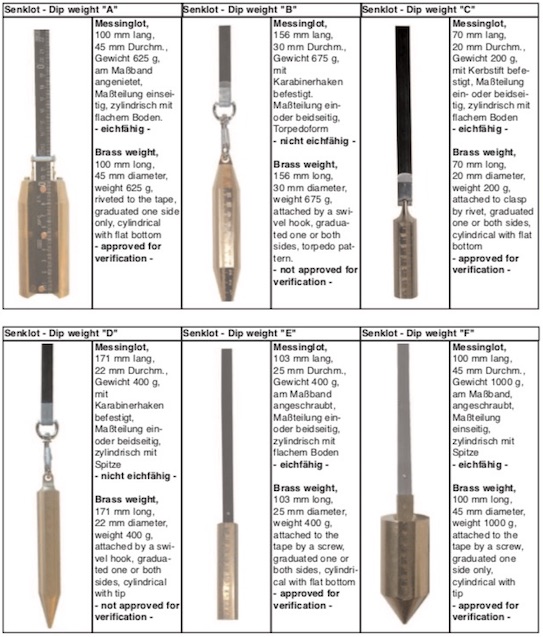

Shown Below, All Weight Options

Shown Below, Nickle Plated Clasp

Shown Below, Tape - 414

Shown Below, Tape - 415

Shown Below, Tape - 415 Special Tapes

Shown Below, 4 Digit I.D. Number, stamped onto tape crimp during Factory Calibration Process, pictured without, and with number.



Shown Below, Optional Carry Case

Commodity Codes
Dipping Tapes 90178010

Download Richter Dipping Tapes - General Brochure PDFDownload Richter Dipping Tapes - General Brochure PDF

Download Richter Dipping Tapes - Correct Selection of Dip Weights PDFDownload Richter Dipping Tapes - Correct Selection of Dip Weights PDF

Download Richter EC Accuracy Class Tables PDFDownload Richter EC Accuracy Class Tables PDF

Download EXAMPLE Richter Conformity Certificate KON1 PDFDownload EXAMPLE Richter Conformity Certificate KON1 PDF

Download EXAMPLE Richter Calibration Certificate PDFDownload EXAMPLE Richter Calibration Certificate PDF
