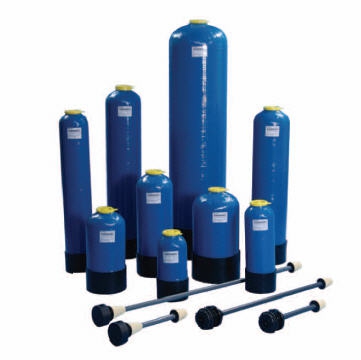

Wound Polyglass Glass Fibre, Ion Exchange Resin, Pressure Vessel / Tower
  • Click to enlarge

Wound Polyglass Glass Fibre, Ion Exchange Resin, Pressure Vessel / Tower

For general use with all Ion Exchange Resins, these towers are mainly used by our customers for the dry-washing of Bio Diesel

For optimum performance, resin manufacturers recommend a minimum resin bed depth of 3 times the vessel diameter, the tower should also be filled with only 50% of its capacity with resin to allow for expansion

IMPORTANT - IF THE VESSEL IS FILLED WITH RESIN TO GREATER THAN 50% OF ITS TOTAL CAPACITY, THE RESIN, AS IT REACHES EXHAUSTION WILL DESTROY THE DISTRIBUTION SYSTEM AND BLOW OUT OF THE TOP, YOU WILL THEN NEED A REPLACEMENT DISTRIBUTION SYSTEM. WE THEREFORE RECOMMEND WHEN FILLING YOUR OWN TOWER THAT YOU COMPLY WITH THE MAXIMUM RECOMMENDED VOLUME

Construction
Constructed from wound Polyglass, wrapped around a strong Polyethylene Inner Shell, and fitted with a Polypropylene & PVC Distribution Tube

Pumped Supply
There are few pumps which will normally pump as slow as is required to supply the smaller vessels. We recommend a continous duty gear pump such as the Viscomat Gear Series would be most appropriate due to the increased resistance of the Resin.

Emtying & Discharging
Emptying these towers can be a messy business, this is because the resin eventually expands to fill the vessel and it can be difficult to 'dig' it out around the central shaft. In this case it may be necessary to unscrew the cap, and wash the resin out with bio diesel via the distribution system, filtering the resin out of the bio diesel as it comes out of the tower, the resin can then be disposed of. To replace the resin, the vessel should be filled to 50% of its capacity and led down for the distribution tube to be screwed in without having to force it down into the resin, potentially damaging the tube

Seals
These vessels are supplied as standard with an NBR (AKA Nitrile / Buna-N) Top Seal, which will swell when used with Bio Diesel, we therefore always recommend you purchase a replacement VITON O'Ring which is resistant to Bio Diesel

Prices and Specification
Part Number Diameter Height Opening NB Total Volume Gross Working Volume using Ion Exchange Resin (Allowing 50% for expansion) Inlet / Outlet Fittings Working Pressure (Max) Weight (Empty) Max Base Load Min Temp Max Temp
0520 5" 20" 2.5" Top Only 4.5 litres 2.25 litres 3/4"BSP Female 10 Bar / 145 PSI 1.5 Kg 40 Kg 1 Celcius 50 Celcius
0613 6" 13" 2.5" Top Only 4.6 litres 2.30 litres 3/4"BSP Female 10 Bar / 145 PSI 1.0 Kg 40 Kg 1 Celcius 50 Celcius
0618 6" 18" 2.5" Top Only 6.9 litres 3.45 litres 3/4"BSP Female 10 Bar / 145 PSI 1.2 Kg 40 Kg 1 Celcius 50 Celcius
0635 6" 35" 2.5" Top Only 14.4 litres 7.2 litres 3/4"BSP Female 10 Bar / 145 PSI 2.2 Kg 40 Kg 1 Celcius 50 Celcius
0713 7" 13" 2.5" Top Only 6.3 litres 3.15 litres 3/4"BSP Female 10 Bar / 145 PSI   60 Kg 1 Celcius 50 Celcius
0717 7" 17" 2.5" Top Only 8.3 litres 4.15 litres 3/4"BSP Female 10 Bar / 145 PSI   60 Kg 1 Celcius 50 Celcius
0730 7" 30" 2.5" Top Only 16.2 litres 8.1 litres 3/4"BSP Female 10 Bar / 145 PSI 2.1 Kg 60 Kg 1 Celcius 50 Celcius
0735 7" 35" 2.5" Top Only 19.0 litres 9.5 litres 3/4"BSP Female 10 Bar / 145 PSI 2.5 Kg 60 Kg 1 Celcius 50 Celcius
0744 7" 44" 2.5" Top Only 25.3 litres 12.65 litres 3/4"BSP Female 10 Bar / 145 PSI 2.3 Kg 60 Kg 1 Celcius 50 Celcius
0813 8" 13" 2.5" Top Only 8.2 litres 4.1 litres 3/4"BSP Female 10 Bar / 145 PSI 1.2 Kg 75 Kg 1 Celcius 50 Celcius
0817 8" 17" 2.5" Top Only 11.0 litres 5.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1.5 Kg 75 Kg 1 Celcius 50 Celcius
0818 8" 18" 2.5" Top Only 11.4 litres 5.7 litres 3/4"BSP Female 10 Bar / 145 PSI 1.5 Kg 75 Kg 1 Celcius 50 Celcius
0822 8" 22" 2.5" Top Only 15.4 litres 7.7 litres 3/4"BSP Female 10 Bar / 145 PSI 2.1 Kg 75 Kg 1 Celcius 50 Celcius
0830 8" 30" 2.5" Top Only 21.4 litres 10.7 litres 3/4"BSP Female 10 Bar / 145 PSI 3.1 Kg 75 Kg 1 Celcius 50 Celcius
0835 8" 35" 2.5" Top Only 24.8 litres 12.4 litres 3/4"BSP Female 10 Bar / 145 PSI 2.8 Kg 75 Kg 1 Celcius 50 Celcius
0840 8" 40" 2.5" Top Only 29.9 litres 14.95 litres 3/4"BSP Female 10 Bar / 145 PSI 3.2 Kg 75 Kg 1 Celcius 50 Celcius
0844 8" 44" 2.5" Top Only 32.2 litres 16.1 litres 3/4"BSP Female 10 Bar / 145 PSI 3.4 Kg 75 Kg 1 Celcius 50 Celcius
0919 9" 19" 2.5" Top Only 16.0 litres 8.0 litres 3/4"BSP Female 10 BAr / 145 PSI 2.1 Kg 75 Kg 1 Celcius 50 Celcius
0935 9" 35" 2.5" Top Only 32.0 litres 16.0 litres 3/4"BSP Female 10 Bar / 145 PSI 3.5 Kg 75 Kg 1 Celcius 50 Celcius
0942 9" 42" 2.5" Top Only 38.0 litres 19.0 litres 3/4"BSP Female 10 Bar / 145 PSI   75 Kg 1 Celcius 50 Celcius
0948 9" 48" 2.5" Top Only 44.0 litres 22.0 litres 3/4"BSP Female 10 Bar / 145 PSI   75 Kg 1 Celcius 50 Celcius
1017 10" 17" 2.5" Top Only 16.8 litres 8.4 litres 3/4"BSP Female 10 Bar / 145 PSI   140 Kg 1 Celcius 50 Celcius
1019 10" 19" 2.5" Top Only 19.1 litres 9.55 litres 3/4"BSP Female 10 Bar / 145 PSI   140 Kg 1 Celcius 50 Celcius
1030 10" 30" 2.5" Top Only 32.4 litres 16.2 litres 3/4"BSP Female 10 Bar / 145 PSI   140 Kg 1 Celcius 50 Celcius
1035 10" 35" 2.5" Top Only 38.8 litres 19.4 litres 3/4"BSP Female 10 Bar / 145 PSI 4.2 Kg 140 Kg 1 Celcius 50 Celcius
1044 10" 44" 2.5" Top Only 50.0 litres 25.0 litres 3/4"BSP Female 10 Bar / 145 PSI 4.9 Kg 140 Kg 1 Celcius 50 Celcius
1054 10" 54" 2.5" Top Only 63.0 litres 31.5 litres 3/4"BSP Female 10 Bar / 145 PSI 6.2 Kg 140 Kg 1 Celcius 50 Celcius
1144 11" 44" 2.5" Top Only 59.8 litres 39.9 litres 3/4"BSP Female 10 Bar / 145 PSI 7.0 Kg 140 Kg 1 Celcius 50 Celcius
1236 12" 36" 2.5" Top Only 55.6 litres 27.8 litres 3/4"BSP Female 10 Bar / 145 PSI 6.1 Kg 170 Kg 1 Celcius 50 Celcius
1248 12" 48" 2.5" Top Only 80.0 litres 40.0 litres 3/4"BSP Female 10 Bar / 145 PSI 6.6 Kg 170 Kg 1 Celcius 50 Celcius
1252 12" 52" 2.5" Top Only 88.0 litres 44.0 litres 3/4"BSP Female 10 Bar / 145 PSI 7.8 Kg 170 Kg 1 Celcius 50 Celcius
1344 13" 44" 2.5" Top Only 85.0 litres 42.5 litres 3/4"BSP Female 10 Bar / 145 PSI   225 Kg 1 Celcius 50 Celcius
1354 13" 54" 2.5" Top Only 105.0 litres 52.5 litres 3/4"BSP Female 10 Bar / 145 PSI 9.2 Kg 225 Kg 1 Celcius 50 Celcius
1452 14" 52" 4" Top Only 115 litres 57.5 litres 1"BSP Female 8.6 Bar / 125 PSI 11.0 Kg   1 Celcius 45 Celcius
1465 14" 65" 4" Top Only 143.0 litres 71.5 litres 1"BSP Female 8.6 Bar / 125 PSI     1 Celcius 45 Celcius
1644 16" 44" 4" Top Only 131.6 65.8 litres 1"BSP Female 8.6 Bar / 125 PSI 13.5 Kg   1 Celcius 45 Celcius
1665 16" 65" 4" Top Only 199.0 litres 99.5 litres 1"BSP Female 8.6 Bar / 125 PSI     1 Celcius 45 Celcius
1865 18" 65" 4" Top Only 250.0 litres 125.0 litres 1"BSP Female 8.6 Bar / 125 PSI     1 Celcius 45 Celcius
2160 21" 60" 4" Top Only 310.0 litres 155.0 litres 1"BSP Female 8.6 Bar / 125 PSI     1 Celcius 45 Celcius
2469 24" 69" 4" Top Only 450.0 litres 225.0 litres 1"BSP Female 8.6 Bar / 125 PSI     1 Celcius 45 Celcius
2472 24" 72"   494 litres 247 litres 1"BSP Female 8.6 Bar / 125 PSI 48.0 Kg   1 Celcius 45 Celcius
1465 14" 65" 4" Top & Bottom 140 Litres 70 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
1665 16" 65" 4" Top & Bottom 170 Litres 85 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
1865 18" 65" 4" Top & Bottom 245 Litres 122.5 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
2160 21" 60" 4" Top & Bottom 310 Litres 155 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
2469 24" 69" 4" Top & Bottom 435 Litres 217.5 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
3072 30" 72" 4" Top & Bottom 712 Litres 356 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
3672 36" 72" 4" Top & Bottom 1084 Litres 542 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
3078 30" 78" 6" Top & Bottom 710 Litres 355 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
3678 36" 78" 6" Top & Bottom 1020 Litres 520 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
4278 42" 78" 6" Top & Bottom 1360 Litres 680 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius
4882 48" 82" 6" Top & Bottom 1840 Litres 920 Litres   8.6 Bar / 125 PSI     1 Celcius 45 Celcius

When replacing elements in filter housings with screw-on bowls we always recommend the use of Silicon O Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O Ring

Download Download Pentair A2727 4 Inch Top Fitting - Data Sheet PDFDownload Pentair A2727 4 Inch Top Fitting - Data Sheet PDF

Download Download Pentair A2821 4 Inch Bottom Fitting - Data Sheet PDFDownload Pentair A2821 4 Inch Bottom Fitting - Data Sheet PDF
